 Post subject: My other 1125r
PostPosted: Thu Jun 25, 2020 9:57 am
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
I know there aren't that many 1125r lovers on here, but I'm gonna do this anyway for the people who are just interested in outcomes.
So my new 1125r runs at temperatures of 85/86c cruising & quickly rises into the 90's to 100+c when moving slower or stood in traffic.
My original one runs at 76/84c cruising & never goes above 94c with the mods I've done to it.
So my conclusion is that some or all of the cooling mods I did worked.
The difference in the engines is the hotter one seems freer revving, gets power from revs, feels a bit more delicate & the engine is noisier.
Whereas the cooler one is much more torquey, just has power on tap, feels more stable engine wise & the engine is much quieter.
The only other variable is the exhaust my original runs the Torque Hammer, My new one runs a HMF, both use the Twin M/Cs ECM which seems to manage both adequately right through the rev range.
My question I'm guessing is?
Should I start with the cooling mods which I know work, or switch the exhausts to check the difference with those?
My own opinion is the exhausts are pretty similar, but there is something niggling me about the free revving & the HMF exhaust, I can't try the HMF on mine as it's still being fixed, although I do have the Torque Hammer hung in my garage & could put that on the new one.
Ah F**k it answered my own question really, do the cooling mods as changing the exhausts will be inconclusive till I can try the HMF on mine.
Sorry guys didn't mean to waste your time, just helped writing the options down.
I'll let you know how it goes.
All the best & have a great day in the :sun: JB

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Thu Jun 25, 2020 2:41 pm
Offline
User avatar

Joined: Fri May 08, 2009 7:54 pm
Posts: 2420
Current ride: 1999 X1
Location: Texas, Gerrards Cross
Radiator core corroded? Coolant or oil need changing? Anything else plugging it up?

I'd look at the state of all the pieces in the current system before throwing parts at it. That's the difference between a parts changer and a technician.

And when it's all done right, a couple caps full of water wetter makes it cool better too. Or just use Engine Ice or Redline SuperCool, my favorite.

_________________
Bob Krzeszkiewicz
2011 Kawasaki Z1000SX - 1999 Buell X1


Top


 Post subject: Re: My other 1125r
PostPosted: Thu Jun 25, 2020 3:37 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
Yeah Thanks Bob,
Just I'm just doing a more structured re-run of what I did to my other one & yes I cleaned the radiator fins as the design of these cowls on the 1125rs means crud builds up inside the very bottom edge of the radiator cooling fins blocking air flow and eventually disintegrating the fins if you don't keep an eye on them. Like you say no point chucking stuff at a job if you ain't gonna bother with the basics.
I think I'm pretty much on top of what I have to do, just reporting (hopefully a little clearer this time) for anyone that's interested.
All the best JB.

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Thu Jun 25, 2020 3:38 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
Thanks Don,
Sorry about putting it in the wrong section, I know you've been doing your best to tidy the site up lately.
Anyway now it's in the right place.
Got the air box off, cleaned all the underside & cut off the ram air section, cleaned the inner frame ready to put heat reflecting tape on & can't find the bloody tape as I tidied my garage up after it flooded the other day. :headbang: God Damn, so just had to order some more & it won't be here till next Wednesday. :(
Still, in the meantime I can make a bracket to re-locate the air temp sensor & get on with plenty other stuff as it's gonna be off the road for a week now.
Cleaning was not a strong point of the previous owner either so it'll give me a chance to get it deep cleaned. Dirty bikes are really shit to work on, spend more time cleaning my bloody hands.
All the best folks. enjoy the :sun: JB.

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Thu Jun 25, 2020 10:11 pm
Offline
User avatar

Joined: Tue May 05, 2009 8:00 pm
Posts: 9749
Current ride: X1 2001 White Riot
Location: southampton
no worries Paul :yup:

_________________
Obey the principles without being bound by them.
Bruce Lee


Top


 Post subject: Re: My other 1125r
PostPosted: Thu Jun 25, 2020 10:36 pm
Offline

Joined: Wed May 06, 2009 5:10 pm
Posts: 1899
Current ride: 99 Cyclone M2
Location: Liverpool
Jazzbutcher wrote:
Sorry guys didn't mean to waste your time, just helped writing the options down.
I'll let you know how it goes.
All the best & have a great day in the :sun: JB


All the time in the world JB, good to tinker :yup:

_________________
Last year I joined a group for anti-social people
We haven't met yet.


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 12:00 am
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
gusm2 wrote:
Jazzbutcher wrote:
Sorry guys didn't mean to waste your time, just helped writing the options down.
I'll let you know how it goes.
All the best & have a great day in the :sun: JB


All the time in the world JB, good to tinker :yup:


Still got the CR gearing conversion waiting for my other one when it arrives back, mainly for the drag strip. I can't believe I got so hooked after just one day, pretty sure you did warn me about that.
Can't believe my original 1125r was heading towards being written off, if it hadn't been for you guys & the advice given, I would've just trusted the wankers who had it, scamming F****r's.
Thanks again to all who offered advice. Due to you I'm getting it back & plenty more sunny days ahead :sun:
All the best. JB.

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 1:30 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
Hi Folks,
I'm guessing everyone is pretty aware of my inability to describe what I'm doing scientifically or even in words most times.
I'm also aware that there was a certain amount of dissent re my explanation of the Ram air system on the 1125r & why I take them off.

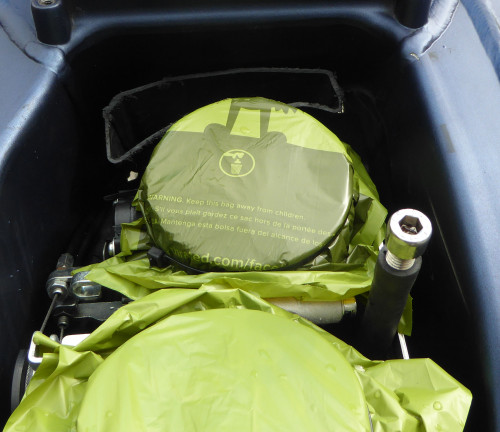

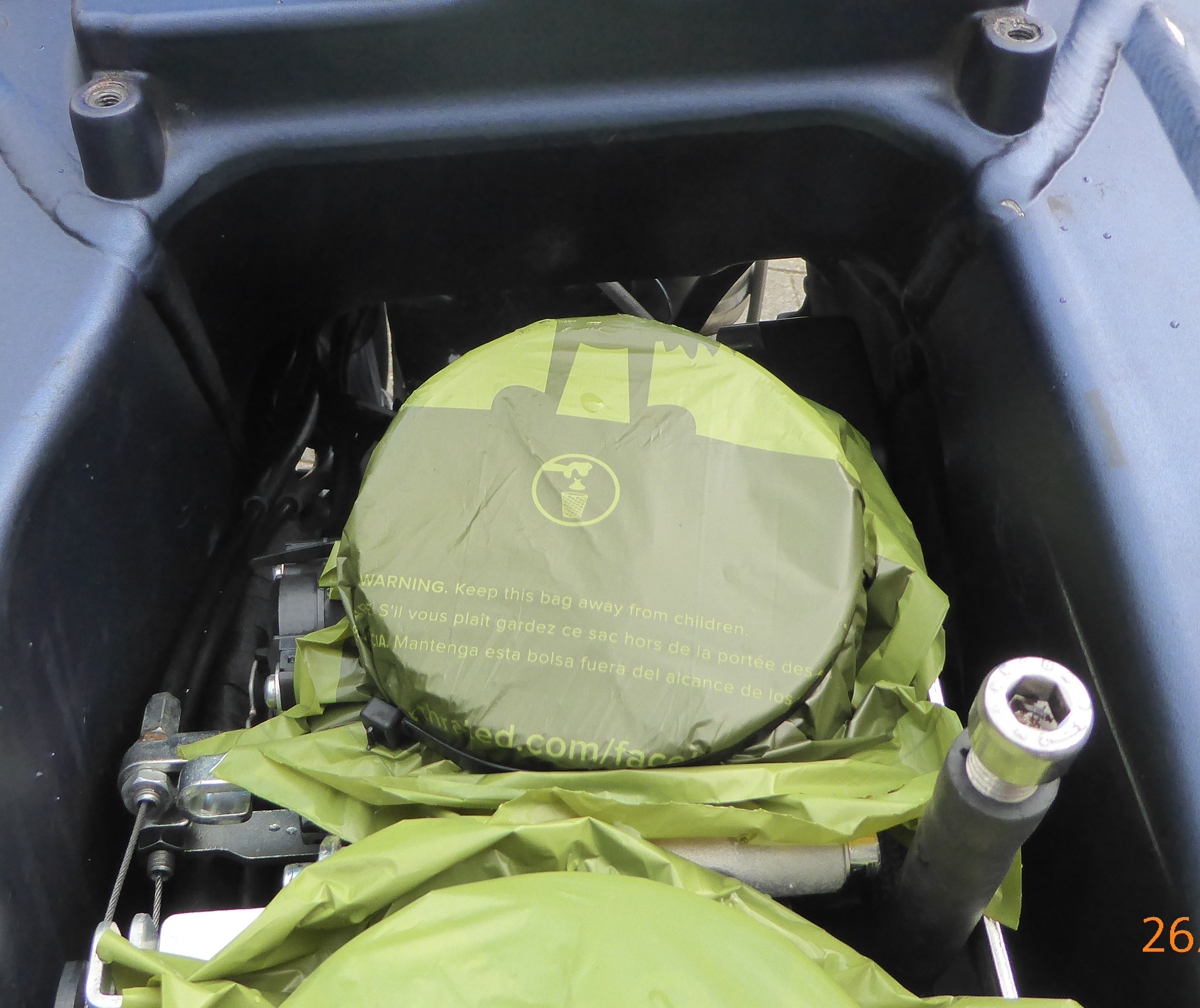

So here you go. These 3 pics should show how much taking the Ram air system off my 1125r improves air flow over the engine, through the frame and how this mod contributes to a 10 degree drop & far more stability in the running temperature.
The only thing you have to imagine is the air box base plate which fits snugly onto the frame more or less sealing itself against the frame for 3/4s of it's length & the tube pictured joins onto that. The tube also is shaped to fit snugly to the cylinder head.
Any questions feel free.
Enjoy the :sun: JB


You do not have the required permissions to view the files attached to this post.

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 2:54 pm
Offline
User avatar

Joined: Wed May 06, 2009 1:43 pm
Posts: 4300
Current ride: The wife
Location: Cofa's tree
Jazzbutcher wrote:
Hi Folks,
I'm guessing everyone is pretty aware of my inability to describe what I'm doing scientifically or even in words most times.
...... These 3 pics

Can't fuckin count either ;)

_________________
I hate being strapped for cash....but it pays the bills


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 3:02 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
Correct on all five counts.
:rotfl:

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 7:38 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
Hi Folks,

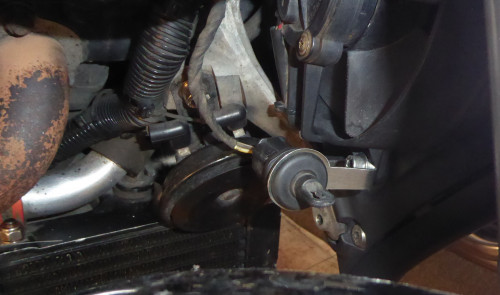

New air temp sensor mount, puts the sensor in constant fresh air & keeps it out of the way of hot air from the fans.
This supplies the ECM with the correct air temperature readings rather than false ones based on the hot air from the fans & rising radiated heat from the engine/exhausts, especially when in traffic.
In it's original mounting point it only ever gets the correct readings on start up (until it's warm), when it's moving & when the fans aren't operational.
Hope everyone is well, have a nice evening. JB

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 7:39 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
Sorry forgot the pic.


You do not have the required permissions to view the files attached to this post.

_________________
Ride Safe & Stay between the hedgerows.


Top


 Post subject: Re: My other 1125r
PostPosted: Fri Jun 26, 2020 10:19 pm
Offline

Joined: Wed Aug 01, 2018 7:58 pm
Posts: 1487
Current ride: Buell 1125R
And the science.

The Intake Air Temperature sensor (IAT) monitors the temperature of the air entering the engine. The engine computer (PCM) needs this information to estimate air density so it can balance air air/fuel mixture. Colder air is more dense than hot air, so cold air requires more fuel to maintain the same air/fuel ratio.
