 Post subject: Air hose size...
PostPosted: Thu Dec 17, 2020 8:04 pm
Offline
User avatar

Joined: Wed May 06, 2009 6:54 pm
Posts: 1895
Current ride: Triumph ST - RS
Location: West Lothian, Bonnie Scotland
...I want to get a retracting air hose reel for my compressor. I know they come in 6, 8 and 10mm internal diameter - how do I find out what size I need. Where do I take the measurement?

I know, basic school boy question but hey, I just can’t find how. I’m thinking just measure across the opening of the female connector that fits on to the compressor?

_________________
Better to Burn Out Than Fade Away

In the garage -

2001 X1
EBR 1190SX
KTM390 Duke
Triumph Street Triple RS
Ducati 1199
CCM Spitfire Scrambler


Top


 Post subject: Re: Air hose size...
PostPosted: Thu Dec 17, 2020 9:42 pm
Offline
User avatar

Joined: Fri May 08, 2009 7:54 pm
Posts: 2494
Current ride: 1999 X1
Location: Texas, Gerrards Cross
Larger I.D.s will introduce a pressure drop and more so the longer the distance. Most single stage compressors can deliver enough of a balance between flow and pressure for tools like chippers, air wrenches and impacts up to 3/4" drive with some success though modern 1/2" drive impacts are 3X as powerful as yesteryear's. The better single stage ones can even do a decent job with HVLP paint guns and seating tire beads. The most common hose sizes for these applications will be 3/8" [10mm]. 6 and 8mm are just going to strangle your air supply and nothing will run worth a shit because when the air finally hits your tool, there will be a pressure drop.

If you have any inclination to use angle grinders and all types of sanders and such that require a continuous air supply of decent pressure, you'll really need a 2 stage compressor. And even a 10mm hose will work fine and long as you have great flow and high SCFMs. Otherwise, they'll crap out in a second flat. Even if you did have flow, they'll have no torque and come to a halt the moment it touches something.

There are larger hoses. I have a large 2 stage compressor that puts out 18 CFM @ 90 psi and 23 SCFM @ 40 so I can run 1/2" [13mm] hose. But I can seat beads fast on a 35 x 12.5/R15 off road tire and run a 6" disc grinder all day long.

_________________
Bob Krzeszkiewicz
2012 XR1200X - 2011 Kawasaki Z1000SX - 1999 Buell X1


Top


 Post subject: Re: Air hose size...
PostPosted: Thu Dec 17, 2020 11:06 pm
Offline
User avatar

Joined: Wed May 06, 2009 5:28 pm
Posts: 7164
Current ride: Muffin 2001 X1
t965m wrote:
...I want to get a retracting air hose reel for my compressor. I know they come in 6, 8 and 10mm internal diameter - how do I find out what size I need. Where do I take the measurement?

I know, basic school boy question but hey, I just can’t find how. I’m thinking just measure across the opening of the female connector that fits on to the compressor?

A lot will depend on what you want to run off it mate , the smaller bores especially with a long hose obviously can't flow as much air as the larger bore, If it's mainly for blowing up tyres etc the 6mm will be more than adequate, if for a windy gun or similar tool you'd probably be better with an 8mm. Most home compressors wouldn't need anything bigger.

_________________
2001 X1 2009 1125CR 2006 Uly X2 and a fully Maz'd S1


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 9:29 am
Offline
User avatar

Joined: Mon Nov 07, 2011 7:10 pm
Posts: 3224
Current ride: Buell ulysses
Location: Telford
:yt: easy answer probably go with the 8mm for future proofing .
but it is like how longs a piece of string question .

what size compressor do you have CFM and air tank size .
how long does hose need to be .
what size tool do you have (CFM wise) and how often will you be using it

compressor just think of the CFM as engine size , (BIG engine can do more work easily )
air tank size ( how long it can go for before having to top up )
Tool size , the bigger the tool CFM the more thirsty for air to feed it ( less miles per gallon) ( or minutes of use per air tank size )

as a foot note
my compressor is in the garage , then 40ft of hose plumbed in carport , then about another 20-30 of hose to walk around car parked on drive to blow up tyres .
works ok for me .

_________________
Buell Ulysses XB12X 06/08
CCM R30 (650cc) 02
Norton Dominators


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 2:21 pm
Offline
User avatar

Joined: Wed May 06, 2009 6:54 pm
Posts: 1895
Current ride: Triumph ST - RS
Location: West Lothian, Bonnie Scotland
Ok - interesting answers, thank you. Does that mean that the connectors are all the same size no matter the ID of the hose?

I only use it for inflating tyres and drying the bikes after washing.

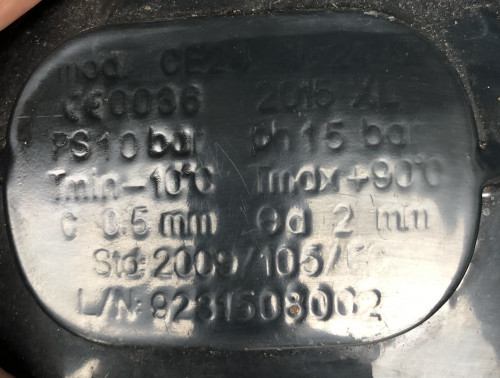

This is what’s on the info plate:


You do not have the required permissions to view the files attached to this post.

_________________
Better to Burn Out Than Fade Away

In the garage -

2001 X1
EBR 1190SX
KTM390 Duke
Triumph Street Triple RS
Ducati 1199
CCM Spitfire Scrambler


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 4:28 pm
Offline
User avatar

Joined: Tue May 05, 2009 8:00 pm
Posts: 10098
Current ride: X1 2001
Location: southampton
probably not
we have lots of different fittings on our air tools at work
which makes it interesting/fekin annoying :headbang:


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 4:32 pm
Offline
User avatar

Joined: Wed May 06, 2009 5:28 pm
Posts: 7164
Current ride: Muffin 2001 X1
t965m wrote:
Ok - interesting answers, thank you. Does that mean that the connectors are all the same size no matter the ID of the hose?

I only use it for inflating tyres and drying the bikes after washing.

This is what’s on the info plate:

There are different types of connector but for example you can get the PCL type with different size tails to fit in the hose but the PCL bit that plugs in will be the same . Most home compressors have the shorter couplings though and I can't remember off the top of my head what they call those.

_________________
2001 X1 2009 1125CR 2006 Uly X2 and a fully Maz'd S1


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 5:29 pm
Offline
User avatar

Joined: Mon Nov 07, 2011 7:10 pm
Posts: 3224
Current ride: Buell ulysses
Location: Telford
kevmean wrote:
t965m wrote:
Ok - interesting answers, thank you. Does that mean that the connectors are all the same size no matter the ID of the hose?

I only use it for inflating tyres and drying the bikes after washing.

This is what’s on the info plate:

There are different types of connector but for example you can get the PCL type with different size tails to fit in the hose but the PCL bit that plugs in will be the same . Most home compressors have the shorter couplings though and I can't remember off the top of my head what they call those.

think its euro kev
Clive
There are different manufactures of connectors ( bit like bikes ) all with their own style, long, short ( good or bad) have a look on eBay, search for airline connectors and loads to get confused about , whichever ones you pick get a few spares just in case, cos like with bike parts they aren’t interchangeable between manufactures.
Most of the manufactures offer these for fitting to 6..8..10..mm air lines

_________________
Buell Ulysses XB12X 06/08
CCM R30 (650cc) 02
Norton Dominators


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 6:22 pm
Offline
User avatar

Joined: Wed May 06, 2009 6:54 pm
Posts: 1895
Current ride: Triumph ST - RS
Location: West Lothian, Bonnie Scotland
Well that was a ninja task :o I’ve taken a punt after looking at the manufacturers website and gone for a 1/4 inch connector. Time will tell :)

_________________
Better to Burn Out Than Fade Away

In the garage -

2001 X1
EBR 1190SX
KTM390 Duke
Triumph Street Triple RS
Ducati 1199
CCM Spitfire Scrambler


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 8:05 pm
Offline
User avatar

Joined: Mon Nov 07, 2011 7:10 pm
Posts: 3224
Current ride: Buell ulysses
Location: Telford
standard conversion
1/4 inch = 6.4 mm
unless it's 1/4 bsp then that's a whole new ball game

_________________
Buell Ulysses XB12X 06/08
CCM R30 (650cc) 02
Norton Dominators


Top


 Post subject: Re: Air hose size...
PostPosted: Fri Dec 18, 2020 8:57 pm
Offline
User avatar

Joined: Wed May 06, 2009 6:54 pm
Posts: 1895
Current ride: Triumph ST - RS
Location: West Lothian, Bonnie Scotland
It’s 1/4 inch BSP to euro as it the hose I’ve ordered...I think :)

_________________
Better to Burn Out Than Fade Away

In the garage -

2001 X1
EBR 1190SX
KTM390 Duke
Triumph Street Triple RS
Ducati 1199
CCM Spitfire Scrambler


Top


 Post subject: Re: Air hose size...
PostPosted: Sat Dec 19, 2020 6:46 am
Offline
User avatar

Joined: Mon Nov 07, 2011 7:10 pm
Posts: 3224
Current ride: Buell ulysses
Location: Telford
we shall have to wait and see what Santa the post man delivers :yup:

_________________
Buell Ulysses XB12X 06/08
CCM R30 (650cc) 02
Norton Dominators


Top


 Post subject: Re: Air hose size...
PostPosted: Sat Dec 19, 2020 12:06 pm
Offline
Moderator
User avatar

Joined: Wed Apr 15, 2009 5:25 pm
Posts: 11856
Location: Oswestry
I've got a box of barbed tail connectors (of different types) and some BSP male to male fittings 9the usual size for Brit bike petrol taps) if you get stuck. They're to fit a 3/8 od hose, I forget the ID.

_________________
If your dreams don't scare you, they are not big enough.


Top


 Post subject: Re: Air hose size...
PostPosted: Sat Dec 19, 2020 3:00 pm
Offline
User avatar

Joined: Wed May 06, 2009 6:54 pm
Posts: 1895
Current ride: Triumph ST - RS
Location: West Lothian, Bonnie Scotland
Thanks all. If it all goes Pete tong I’ve got a hose that I can replace the one on the retractable thingie with. Assuming I can strip it down without breaking it of course ;)

_________________
Better to Burn Out Than Fade Away

In the garage -

2001 X1
EBR 1190SX
KTM390 Duke
Triumph Street Triple RS
Ducati 1199
CCM Spitfire Scrambler


Top


 Post subject: Re: Air hose size...
PostPosted: Sat Dec 19, 2020 5:37 pm
Offline
User avatar

Joined: Wed May 06, 2009 5:28 pm
Posts: 7164
Current ride: Muffin 2001 X1
t965m wrote:
Thanks all. If it all goes Pete tong I’ve got a hose that I can replace the one on the retractable thingie with. Assuming I can strip it down without breaking it of course ;)

Best thing is when you are doing your weekly zoom advice meeting to mojo mick show him your hose ;) he will be able to advise on size lOl
