 Post subject: S1W NOISY ENGINE
PostPosted: 27 Dec 2017 11:22
Offline

Joined: 06 May 2009 23:15
Posts: 32
Current ride: S1W, KTM990SM
Location: Morpeth, Northumberland
After an oil & filter change the engine developed a tappet noise from the rear cylinder. Suspected the JIMs valve lifters, removed and cleaned the lifters, didn't find much wrong with them but as a precaution the OEM lifters were installed. This made no difference as the noise was still there. Further investigation found that the exhaust valve rocker arm was sitting deeper on the valve cap than it should. Will be removing the head to investigate further.
Anyone had this on their engine or seen this before?


Attachments:

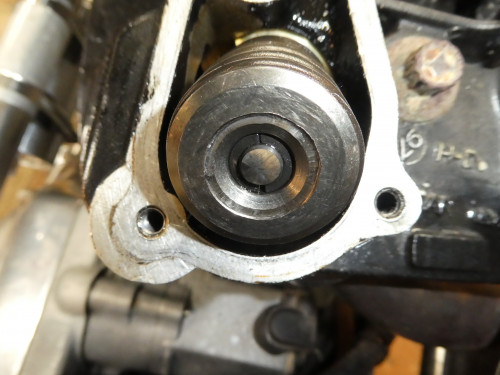

File comment: S1W EXHAUST
P1010550.JPG [ 3.59 MiB | Viewed 714 times ]
Top
 Post subject: Re: S1W NOISY ENGINE
PostPosted: 27 Dec 2017 15:27
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
That doesn’t look like the standard collar...

_________________
08 Specialized Langster


Top
 Post subject: Re: S1W NOISY ENGINE
PostPosted: 27 Dec 2017 23:00
Offline

Joined: 06 May 2009 23:15
Posts: 32
Current ride: S1W, KTM990SM
Location: Morpeth, Northumberland
That's the standard collar that's been gouged out by the rocker arm. Haven't taken the head off yet, maybe the valve has pocketed causing the rocker arm to contact the collar.


Top
 Post subject: Re: S1W NOISY ENGINE
PostPosted: 27 Dec 2017 23:51
Offline

Joined: 15 Nov 2014 20:36
Posts: 215
Current ride: .....
check height against other valve?
also rocker shaft bearing for lift.
although i would be inclined down the pocketed valve route as well.
