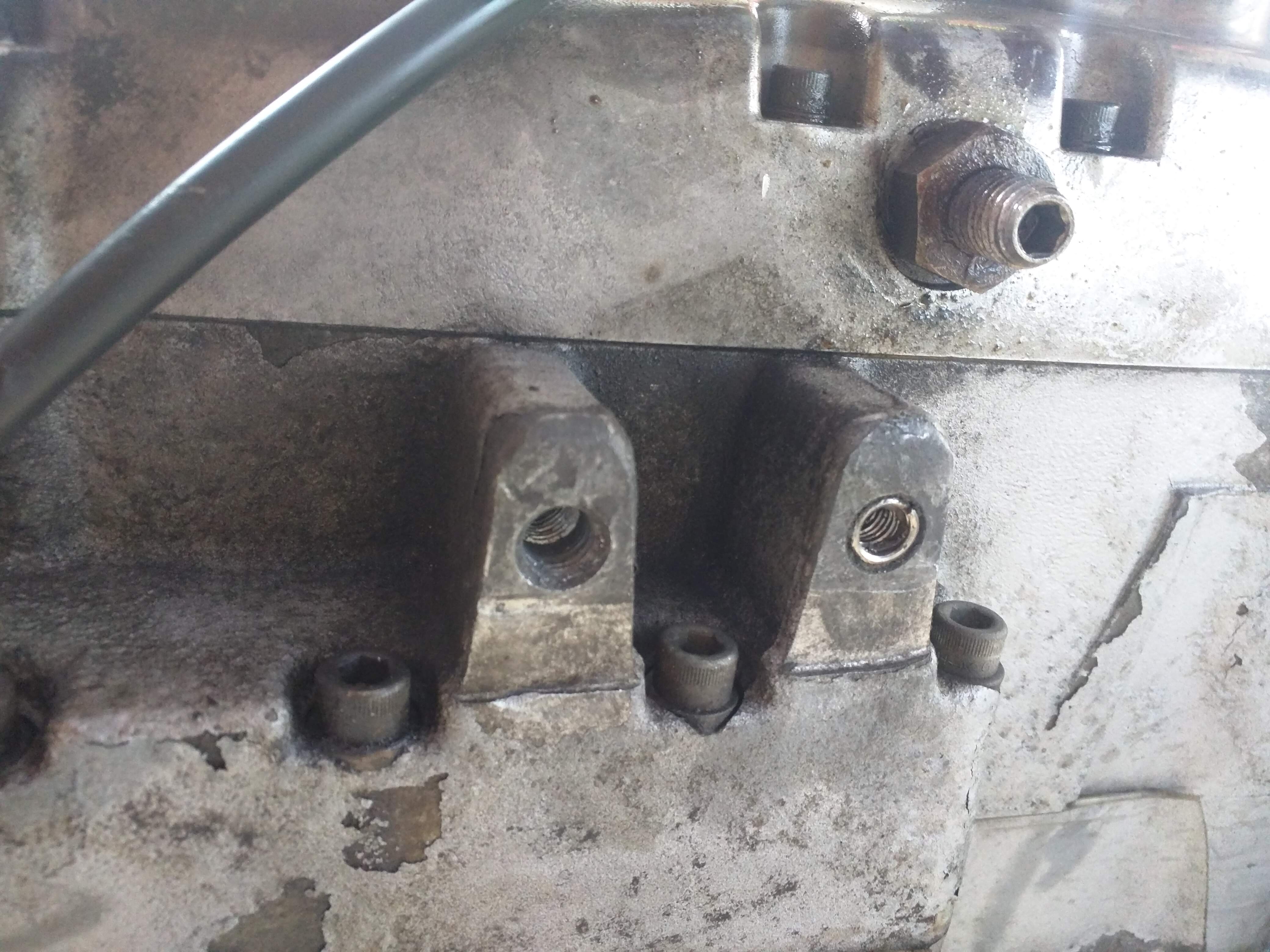

Well the threads in the crankcase for mounting the side-stand are properly chewed out.
Previous owner has helicoiled them and they are just mush.

https://photos.app.goo.gl/mwThvEVdZUuNYxSu8
Also Uploaded a file
Anyway, I'm sure you've seen knackered threads before.

Hopefully the photo has worked and you can see the issue (one helicoil fell out).
I have a chum making up some appropriate steel bits threaded on both in and outside which needs doing in any event.

My question is how much meat is there in those lugs cast into the crankcase?
How far to the offside (right) of the bike do they extend on the inside?
It's a weak design and I see that there is a mod on later bikes moving to 3 bolts. If there is enough meat on both then I would make up a plate and go to 4 bolts.

I have looked in the parts list and the service manual but can't find an image that will help me to relax while drilling into the crankcase. Does anyone have any photos of the inside of that casting, or know their way around this area?

Thanks in Advance
Paul


You do not have the required permissions to view the files attached to this post.

_________________
Rules are for the guidance of wise men and the obedience of fools.


Top


PostPosted: Fri May 03, 2019 1:47 pm
Offline
User avatar

Joined: Wed May 06, 2009 7:42 pm
Posts: 2881
Current ride: M2 Razorback
Location: Mouth of the Port in the Shire of Hamp
Can't believe no one's responded to this yet...
I can't help specifically with XB geography as I've never owned nor stripped one but, as a (properly fitted) 'helicoil' is stronger than its equivalent size non-helicoiled tapped thread, I would persevere with the principle but go up a size or two...a nice course thread like 3/8 UNC or M10 x 1.5 should be fine. I would imagine that the previous repair was not tapped out square, or fully thread cut to the bottom, and thus the helicoil was doomed.

_________________
'98 M2 Razorback, it's a keeper.


Top


PostPosted: Fri May 03, 2019 2:54 pm
Offline
User avatar

Joined: Tue May 05, 2009 8:00 pm
Posts: 9734
Current ride: X1 2001 White Riot
Location: southampton
:yt: as Rik has said

_________________
Obey the principles without being bound by them.
Bruce Lee


Top


PostPosted: Mon May 06, 2019 6:25 am
Offline

Joined: Sun Oct 14, 2018 6:54 am
Posts: 28
Current ride: 2007 Ulysses
Location: Elmswell Suffolk
Thanks for your input.

I guess it is unlikely that someone stripping out an XB crankcase would notice / photograph the stand mounting lugs. So unless someone has one on the bench then they can't help.

I will go with the original design using steel inserts for now but if that fails I will have to think again.

Thanks

_________________
Rules are for the guidance of wise men and the obedience of fools.


Top


PostPosted: Mon May 06, 2019 1:36 pm
Offline
proff. patpending
User avatar

Joined: Wed May 06, 2009 8:20 pm
Posts: 14700
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
I’ve got some crank cases on the bench. I’ll take some photos (will be tomorrow at the earliest).

_________________
08 Specialized Langster


Top


PostPosted: Mon May 06, 2019 7:28 pm
Online
User avatar

Joined: Wed May 06, 2009 5:28 pm
Posts: 7112
Current ride: Muffin 2001 X1
Timesert inserts would probably be stronger than helicoils.

_________________
2001 X1 2009 1125CR 2006 Uly X2 and a fully Maz'd S1


Top


PostPosted: Mon May 06, 2019 8:34 pm
Offline
proff. patpending
User avatar

Joined: Wed May 06, 2009 8:20 pm
Posts: 14700
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
kevmean wrote:
Timesert inserts would probably be stronger than helicoils.

We use helicoils at work, not timeserts...

_________________
08 Specialized Langster


Top


PostPosted: Mon May 06, 2019 9:09 pm
Offline
Site Admin
User avatar

Joined: Wed Apr 15, 2009 5:17 pm
Posts: 8394
Location: Manchester
:yt: ....I hate Timeserts :)

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top


PostPosted: Tue Jun 18, 2019 6:53 pm
Offline
User avatar

Joined: Wed May 06, 2009 9:29 pm
Posts: 1443
:yt:
So do I.


Top


PostPosted: Mon Jul 08, 2019 9:30 am
Offline

Joined: Sun Oct 14, 2018 6:54 am
Posts: 28
Current ride: 2007 Ulysses
Location: Elmswell Suffolk
I have some stainless tubes threaded inside and out that a friend has made up for me - should be stronger than the Timeserts and Helicoils

Found my picture - someone selling one on FB

Looks like I can go to 3 or 4 bolts.


You do not have the required permissions to view the files attached to this post.
