PostPosted: 22 Jun 2011 21:12
Offline
User avatar

Joined: 26 May 2009 12:58
Posts: 591
Guys, I'm looking for some advice on where in the York area (or reasonably close) one can take an X1 with a Mikuni carb and a race ECU to get it put on a dyno and exhaust gas analyzer and have it adjusted. It pinks a bit under heavy load and full open throttle, though 97 octane fuel, *almost* cures it. It's just needs a bit of feddling.

Is Maz the closet man in the area or is there somebody else with the equipment? My plan was to take the bike to Moorespeed down South, but the X1 has now been sold to a chap living up in York, and he obviously wants to get that looked at as and when, so I wanted to check with you chaps to see who I could recommend to him.

TA! =)


Mich

_________________
Illegitimi non carborundum


Top
PostPosted: 22 Jun 2011 21:41
Offline
Nanny Brown
User avatar

Joined: 23 May 2009 22:22
Posts: 6177
Location: Portsmouth, UK
mich wrote:
Is Maz the closet man in the area or is there somebody else with the equipment? Mich



Mich, what ARE you saying about Maz...???????? :rofl: :rofl:

_________________
Valencia Orange XB12Scg - serviced by Maz 2018
Black P3 Blast - serviced by Maz and fixed by Maz in 2019


Top
PostPosted: 22 Jun 2011 22:18
Offline
User avatar

Joined: 26 May 2009 12:58
Posts: 591
Sorry Jill, that was a genuine miss-spelling! :oooops:

_________________
Illegitimi non carborundum


Top
PostPosted: 22 Jun 2011 22:20
Offline
Nanny Brown
User avatar

Joined: 23 May 2009 22:22
Posts: 6177
Location: Portsmouth, UK
mich wrote:
Sorry Jill, that was a genuine miss-spelling! :oooops:



No worries...just realised this is tech forum too.... so double :oooops: for me!! :o

_________________
Valencia Orange XB12Scg - serviced by Maz 2018
Black P3 Blast - serviced by Maz and fixed by Maz in 2019


Top
PostPosted: 22 Jun 2011 22:31
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
I know there was some discussion about this before, however I think I understood that you have a Race ECM on the bike with no TPS input, only CPS. Yeah?

The ignition units on carb-ed bikes have a VOES, so the ignition unit knows when the throttle is closed and hence when to give it a bit of advance.

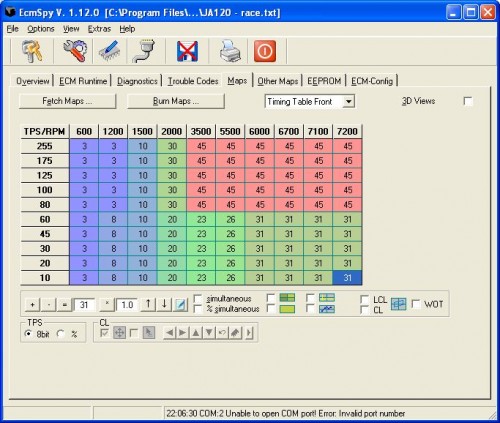

Your map looks like this:
Attachment:
mich.jpg [ 83.45 KiB | Viewed 1351 times ]


With no TPS, you will be at 0 TPS regardless of throttle opening, so a whopping 45 deg advance from 3500 upwards on WOT, no wonder it knocks... Bet it runs rubbish too...

What would I do?

Well, firstly I would get a VOES and plumb it in like this:
Attachment:
mich2.jpg [ 7.96 KiB | Viewed 1351 times ]


Then I would remap the ignition like this (and do the same on the rear):
Attachment:
mich3.jpg [ 82.24 KiB | Viewed 1351 times ]


Or of course, fit an ignition system into the cam cover (less carve up of your wiring loom), like a Dyna 2000i

_________________
08 Specialized Langster


Top
PostPosted: 22 Jun 2011 22:54
Offline
User avatar

Joined: 26 May 2009 12:58
Posts: 591
Hi Pash, thanks for the info. I am not sure whether all of it applies though because the bike actually runs fine (apart from the pinking). Plenty of power, idles well, no hesitation and steady torque curve right to the top of the rev range. Obviously all measure by my seat of my pants dyno. So I am not sure what the previous owner did to the ECU and how they mapped it, but they haven't done a bad job at it. The pinking only started after I had the squish band machined in the heads to raise the compression a smidgen. Though as said, 97 Octane fuel actually helps a lot and it's almost imperceptible.

P.S. I can't do any of this work because I don't have the cables or the software. Who up north can do this sort of stuff. Of course, if you think Maz is the best man to go to I will recommend that to the new owner of the bike without hesitation. Just wasn't sure whether he had an exhaust has analyzer kicking around..... ;)

_________________
Illegitimi non carborundum


Top
PostPosted: 22 Jun 2011 23:32
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8642
Location: Manchester
Yes, I have a 5 gas exhaust analyser but doubt very much whether I would need it........as I have said to you before and as Pash has pointed out above, your problem is ignition based.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 23 Jun 2011 07:09
Offline
User avatar

Joined: 26 May 2009 12:58
Posts: 591
Hi Maz, that's all I needed to know. Are you happy for me to point him in your direction for the work?
