Crankcase breather blowing oil

This is a reference section for handy guides, tips and hints for all those jobs you might want to do on your bike. UKBEG takes no responsibility for your inept spannering!
Hardtailtomo
Posts: 8
Joined: Wed Jan 10, 2018 7:00 pm
Current ride: Buell 1200 lightning

Crankcase breather blowing oil

Postby Hardtailtomo » Wed Jan 10, 2018 8:12 pm

Hi looking for advice,

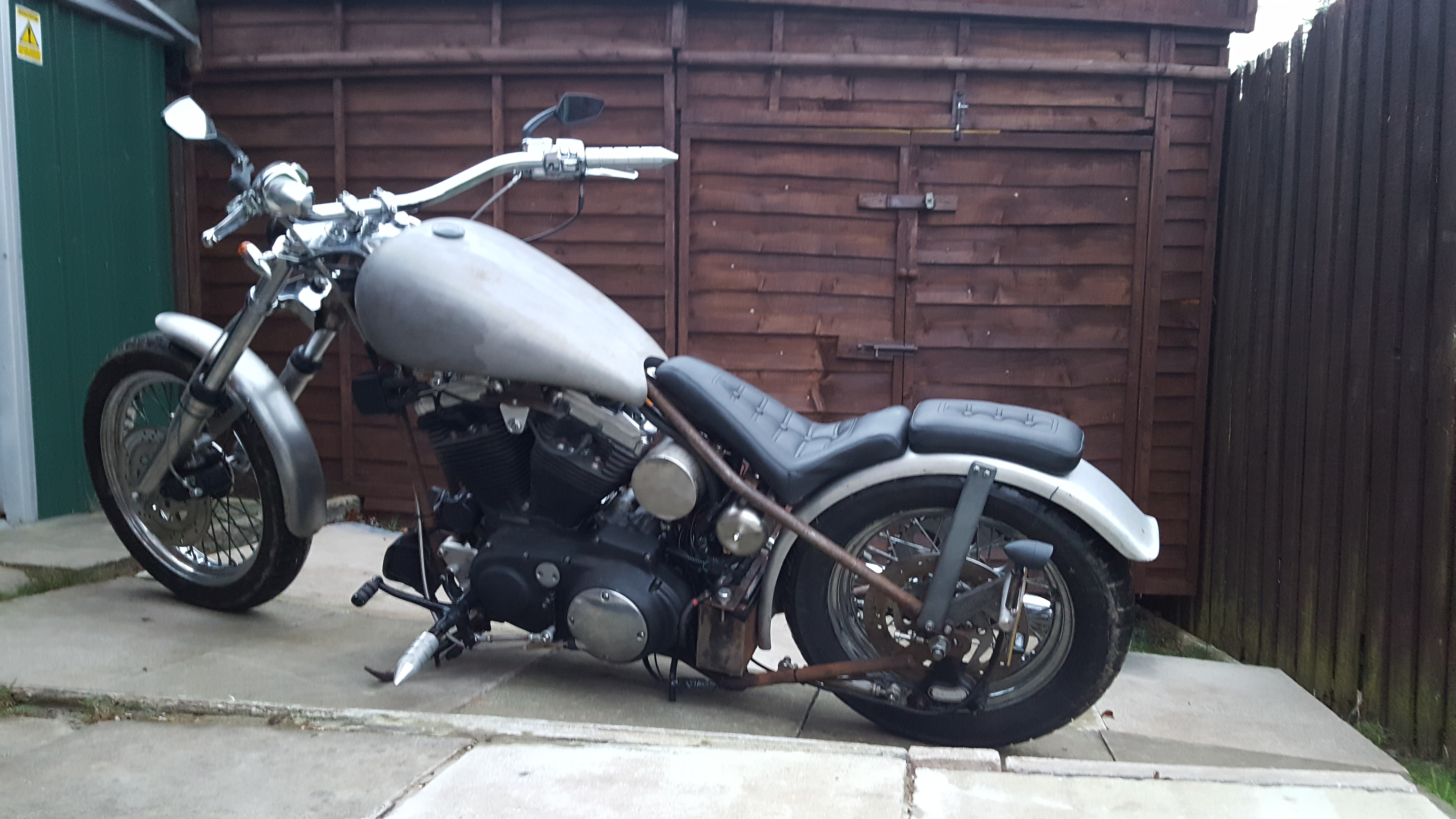

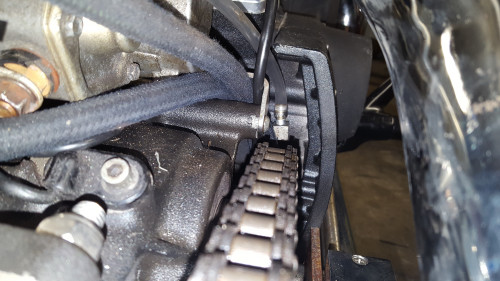

Just finishing a hardtail chop using a 200 buell 1200 lightning engine. Its pumping quit a bit of oil from what I think is the crankcase breather nipple (see pic). Not overfilled oil nor are head breathers blocked. Reading various blogs on this things are pointing to the crankcase seal failure. Anyone else had this and did the new seal solve it?...thanks
You do not have the required permissions to view the files attached to this post.

User avatar
TOPGUMM
Posts: 2967
Joined: Fri May 22, 2009 6:43 pm
Current ride: S1`s
Location: Llanelli South Wales

Re: Crankcase breather blowing oil

Postby TOPGUMM » Wed Jan 10, 2018 8:17 pm

I think it`s just shitting it self. :P

User avatar
TOPGUMM
Posts: 2967
Joined: Fri May 22, 2009 6:43 pm
Current ride: S1`s
Location: Llanelli South Wales

Re: Crankcase breather blowing oil

Postby TOPGUMM » Wed Jan 10, 2018 8:49 pm


User avatar
Maz
Site Admin
Posts: 8591
Joined: Wed Apr 15, 2009 5:17 pm
Location: Manchester

Re: Crankcase breather blowing oil

Postby Maz » Wed Jan 10, 2018 9:12 pm

Are you talking about the elbow on the back of the camcase with clear hose on it ?......if so, that is the oil tank breather hose ie. it should be routed to the oil tank :)
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR

User avatar
Nutah
Posts: 10467
Joined: Tue May 05, 2009 8:00 pm
Current ride: X1 2001
Location: southampton

Re: Crankcase breather blowing oil

Postby Nutah » Wed Jan 10, 2018 9:16 pm

TOPGUMM wrote:I think it`s just shitting it self. :P


:rotfl: :rotfl:
Feros Ferio

Hardtailtomo
Posts: 8
Joined: Wed Jan 10, 2018 7:00 pm
Current ride: Buell 1200 lightning

Re: Crankcase breather blowing oil

Postby Hardtailtomo » Wed Jan 10, 2018 9:32 pm

Yes, the nipple with the clear pipe on it. I have a breather pipe comming from my oil tank that I can put on it but I won't have any tank breather then as not sure if they are seal units? If so I would expect that the cylinder head breathers to come into play....just not sure ... dont want to preasurise the tank!

User avatar
Maz
Site Admin
Posts: 8591
Joined: Wed Apr 15, 2009 5:17 pm
Location: Manchester

Re: Crankcase breather blowing oil

Postby Maz » Wed Jan 10, 2018 9:42 pm

Exactly, that's what it's for ie. the oil tank volume changes are connected to the engine via that hose and the cylinder head breathers take care of it.....if you have that clear hose going to atmosphere, then you're gonna run out of oil PDQ lOl
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR

Hardtailtomo
Posts: 8
Joined: Wed Jan 10, 2018 7:00 pm
Current ride: Buell 1200 lightning

Re: Crankcase breather blowing oil

Postby Hardtailtomo » Wed Jan 10, 2018 10:48 pm

Others have said that their should be a mist comming out of that nipple/hose and some have routed it to a can or through the exhaust system? Do I take it then it's a sealed oil system on the buell lighting and it breaths through the head only? Be great if i could could put the tank breather on it...will solve my problem in an instant ...Thanks

User avatar
Maz
Site Admin
Posts: 8591
Joined: Wed Apr 15, 2009 5:17 pm
Location: Manchester

Re: Crankcase breather blowing oil

Postby Maz » Wed Jan 10, 2018 10:50 pm

It IS a sealed system, go ahead and connect that breather to your oil tank = job done :yup:
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR

Hardtailtomo
Posts: 8
Joined: Wed Jan 10, 2018 7:00 pm
Current ride: Buell 1200 lightning

Re: Crankcase breather blowing oil

Postby Hardtailtomo » Wed Jan 10, 2018 11:02 pm

Thank you for your time and knowledge...will update you on the outcome.

User avatar
Maz
Site Admin
Posts: 8591
Joined: Wed Apr 15, 2009 5:17 pm
Location: Manchester

Re: Crankcase breather blowing oil

Postby Maz » Wed Jan 10, 2018 11:29 pm

No need mate, it'll be as designed :yup:.......unlike the rest of the 'bike' :evil:
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR

Hardtailtomo
Posts: 8
Joined: Wed Jan 10, 2018 7:00 pm
Current ride: Buell 1200 lightning

Re: Crankcase breather blowing oil

Postby Hardtailtomo » Wed Jan 10, 2018 11:55 pm

True..thanks

User avatar
Maz
Site Admin
Posts: 8591
Joined: Wed Apr 15, 2009 5:17 pm
Location: Manchester

Re: Crankcase breather blowing oil

Postby Maz » Thu Jan 11, 2018 12:01 am

Sorry, was just thinking out loud ......unless you have a cush drive in the rear wheel, that chain is gonna trash the tranny big time.....although I'm guessing in that chassis the Buell engine will never see its true potential......just wish you builders of 'fashion' bikes would stick to using ordinary H-D motors instead of wasting an engine developed for a performance sports bike :)
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR

User avatar
x1glider
Posts: 2462
Joined: Fri May 08, 2009 7:54 pm
Current ride: 1999 X1
Location: Texas, Gerrards Cross

Re: Crankcase breather blowing oil

Postby x1glider » Thu Jan 11, 2018 5:28 pm

Maz wrote:No need mate, it'll be as designed :yup:.......unlike the rest of the 'bike' :evil:

lOl
Bob Krzeszkiewicz
2012 XR1200X - 2011 Kawasaki Z1000SX - 1999 Buell X1

User avatar
x1glider
Posts: 2462
Joined: Fri May 08, 2009 7:54 pm
Current ride: 1999 X1
Location: Texas, Gerrards Cross

Re: Crankcase breather blowing oil

Postby x1glider » Thu Jan 11, 2018 5:38 pm

I'm sure the choice of chain drive was a function of not being able to find a belt of the proper length for his design. But then again, with the various pulley and sprocket sizes out there, perhaps a combo could have been achieved that would fit properly, although perhaps at the expense of a crap final drive ratio.

That said, when I club raced an X1 for 2 seasons in heavyweight sportsman, I had a chain conversion (with the crappy tubular swingarm) but never had a tranny issue as hard as I beat on that bike. He might be ok long-term for putzing around at a leisurely pace.
Bob Krzeszkiewicz
2012 XR1200X - 2011 Kawasaki Z1000SX - 1999 Buell X1
