WILLYBUELL

Post subject: DONT THINK THIS HELPS

PostPosted: 09 Feb 2012 23:17

Offline

Think Pink

Joined: 07 Jun 2010 00:37
Posts: 3777
Current ride: Awesome Ulysses & X1
Location: balderton, newark

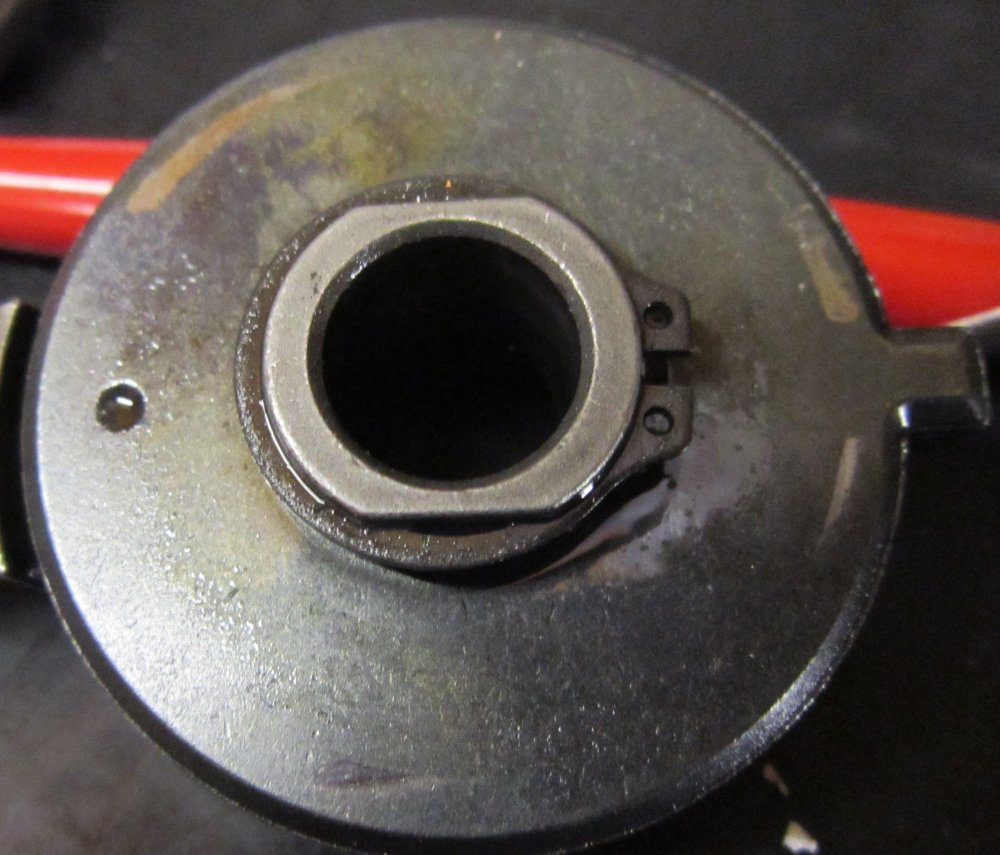

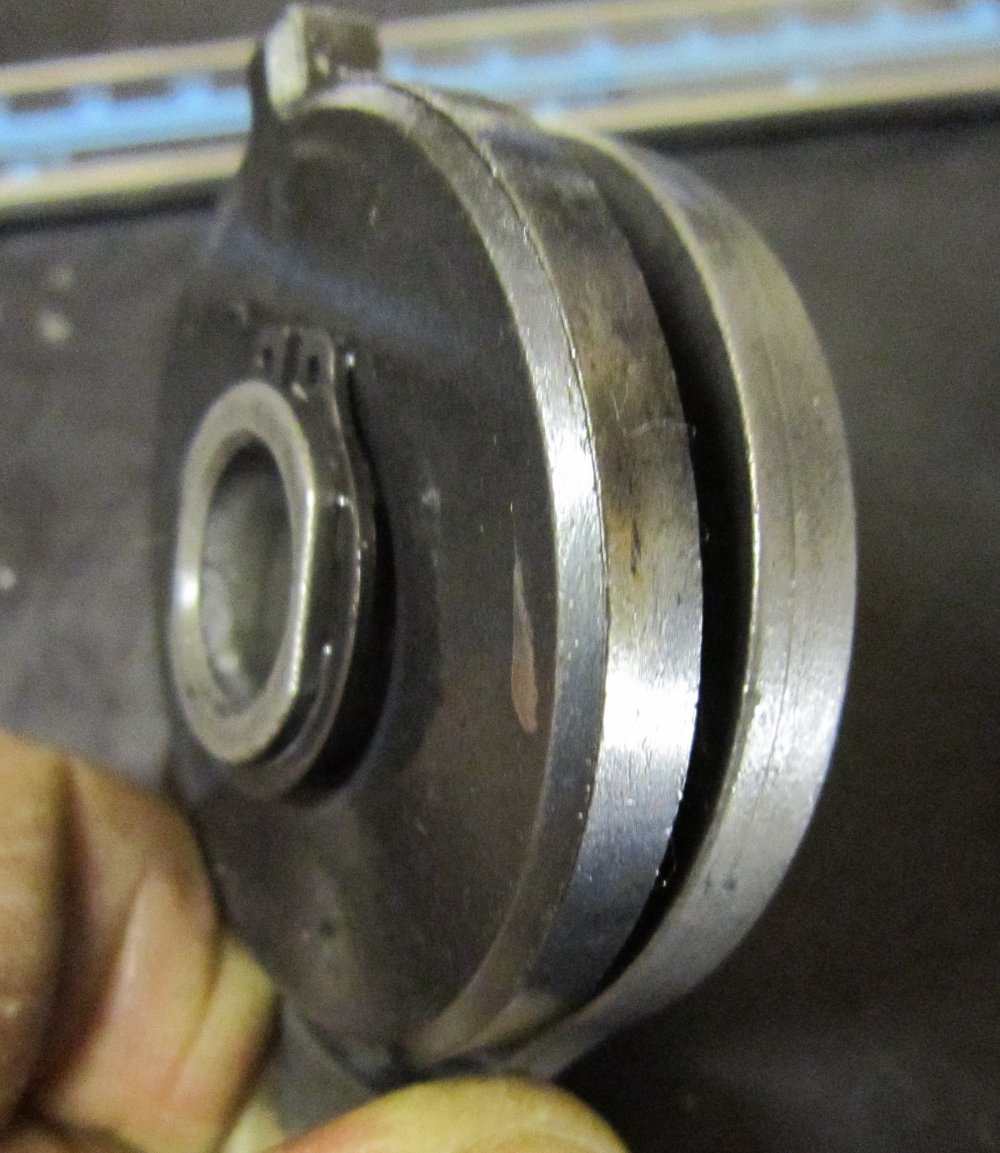

while engaging in my cover repair STUMBULLED across this ,clocked the shape of the inner clutch ramps see pics BLOODY GREAT CHAMFER , NOW the pocket int cover is near as damit square corner ,so why IN THE BLUE FUCK is there the shamfer ,did sum numbers ID of pocket 53.11 small DIA of chamfer 49.80 . thats a loss of contact area of 3.3 mm on an already frail area ,also noticed small pollised areas on the inner ramp ,hmmmmmmmm .needs to be a small amount of defection on the lip to give a full contact ont ramp ,ooa also polised were the balls sit int ramps to see what it MAY do to the clutch feel

al for now tudal pip :sun:

recon ill pop round von shackelfords & surface grind the shamfer off :shut:

Attachments:

C R 3.jpg [ 97.53 KiB | Viewed 415 times ]

C R 2.jpg [ 128.88 KiB | Viewed 415 times ]

C R 1.jpg [ 180.26 KiB | Viewed 415 times ]
