Garage Talk...........

General Buell Chat. Home for The Tyre Thread and The Oil Thread, and any Buell related chat.
User avatar
kevmean
Posts: 7229
Joined: Wed May 06, 2009 5:28 pm
Current ride: 1991 RS1200 westwind

Re: Garage Talk...........

Postby kevmean » Wed Dec 30, 2015 8:42 pm

8-) :clap: :yup: Well done Mojo 8-)
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

User avatar
Finmows
Posts: 4638
Joined: Wed May 06, 2009 1:43 pm
Current ride: The wife
Location: Cofa's tree

Re: Garage Talk...........

Postby Finmows » Wed Dec 30, 2015 10:30 pm

:yt: :clap:
I hate being strapped for cash....but it pays the bills

User avatar
spondon440
Posts: 1478
Joined: Wed May 06, 2009 9:29 pm

Re: Garage Talk...........

Postby spondon440 » Thu Dec 31, 2015 2:13 pm

They look great pal :yup:

User avatar
Adam
Moderator
Posts: 11772
Joined: Wed Apr 15, 2009 5:25 pm
Location: Oswestry

Re: Garage Talk...........

Postby Adam » Thu Dec 31, 2015 8:57 pm

....a manly slap on the back from me too :D 8-)
If your dreams don't scare you, they are not big enough.

User avatar
Adam
Moderator
Posts: 11772
Joined: Wed Apr 15, 2009 5:25 pm
Location: Oswestry

Re: Garage Talk...........

Postby Adam » Thu Dec 31, 2015 8:59 pm

When the bike is done, I'll bet your eyes will be drawn first to your wheels, and you'll think, 'I did that' 8-) :worthy:
If your dreams don't scare you, they are not big enough.

User avatar
mojomick
Milf Hunter
Posts: 4610
Joined: Wed May 06, 2009 4:47 pm
Current ride: '98 S1
Location: Wessex

Re: Garage Talk...........

Postby mojomick » Thu Dec 31, 2015 9:24 pm

Adam wrote:When the bike is done, I'll bet your eyes will be drawn first to your wheels, and you'll think, 'I did that' 8-) :worthy:


Nah, they'll be drawn to the BNR primary drive and I'll think,"I wish I had made that". lOl

I'm still waiting for bearings,as I want to fit these before truing the wheels, so I made up my stainless bearing collars and spacer tube today instead.
I can only post the one picture, as the others are too big, apparently. :headbang:
You do not have the required permissions to view the files attached to this post.
I started out with nothing and still got most of it left.

User avatar
deepsix
Posts: 4357
Joined: Wed May 06, 2009 4:03 pm
Current ride: S1w X1 1125CR
Location: NNW of Sarfampton

Re: Garage Talk...........

Postby deepsix » Thu Dec 31, 2015 11:54 pm

Are you sure that you're not from Sunderland. :old:
I'm a Hornithologist, I get excited by exotic birds.........

User avatar
mojomick
Milf Hunter
Posts: 4610
Joined: Wed May 06, 2009 4:47 pm
Current ride: '98 S1
Location: Wessex

Re: Garage Talk...........

Postby mojomick » Mon Jan 04, 2016 8:58 pm

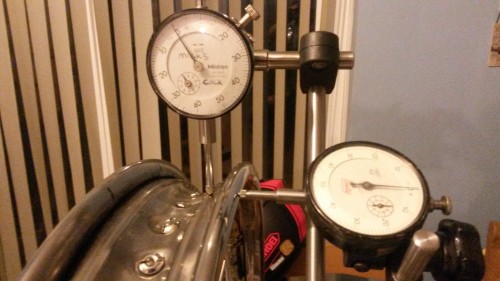

I've got two clocks set up now. I've got 0.012" radial (up and down) T.I.R and about 0.030" axial (side to side). I'll keep at it for a bit more,as 0.010" or less was my target, but I'm sure that once the tyre is on, I'll be thinking, "Why did I bother"........... lOl
You do not have the required permissions to view the files attached to this post.
I started out with nothing and still got most of it left.

User avatar
03
Posts: 927
Joined: Wed Apr 29, 2009 7:27 pm

Re: Garage Talk...........

Postby 03 » Mon Jan 04, 2016 9:14 pm

Mick, it probably isn't even round within 0.012"?

User avatar
mojomick
Milf Hunter
Posts: 4610
Joined: Wed May 06, 2009 4:47 pm
Current ride: '98 S1
Location: Wessex

Re: Garage Talk...........

Postby mojomick » Mon Jan 04, 2016 10:44 pm

03 wrote:Mick, it probably isn't even round within 0.012"?


Yeah, I agree. I'll just get it as good as I can. I don't have the time constraints as someone doing it for a living, so I can persevere for a while. Like I said before, by the time the tyre is on, 0.012" will be academic.
I started out with nothing and still got most of it left.

User avatar
spondon440
Posts: 1478
Joined: Wed May 06, 2009 9:29 pm

Re: Garage Talk...........

Postby spondon440 » Mon May 30, 2016 1:23 pm

oops
Last edited by spondon440 on Mon May 30, 2016 1:28 pm, edited 1 time in total.

User avatar
spondon440
Posts: 1478
Joined: Wed May 06, 2009 9:29 pm

Re: Garage Talk...........

Postby spondon440 » Mon May 30, 2016 1:24 pm

Shouldn't really whing because not everyone gets to have a milling machine in the garage, really wanted to fit a power feed though, trouble was that no one makes such a thing for this machine.
I bought one that we use at work and set about fitting it, had to make an adapter shaft for the end of the traverse shaft, turned it and machined a 4 mm keyway on the myford lathe.
Had to turn a shrink fit adapter over the original collar to fit the motor


Had to acurately drill the only bit of cast iron on the end of the traverse and bolt the motor mount I'd made to.



Works a treat now, I fit these to all the millers at work so can't see I'll ever wear it out at home, unbelievably cost £100.00, special offer from MSC with an end of month discount.

Andy

User avatar
mojomick
Milf Hunter
Posts: 4610
Joined: Wed May 06, 2009 4:47 pm
Current ride: '98 S1
Location: Wessex

Re: Garage Talk...........

Postby mojomick » Mon Jun 20, 2016 10:08 pm

Can't beat power feeds all round. The one on the knee broke the other week, that's a lot of winding up and down.
I started out with nothing and still got most of it left.

Mickrick
Posts: 1028
Joined: Wed Nov 16, 2011 9:57 pm
Current ride: Pushbike!
Location: Spain

Re: Garage Talk...........

Postby Mickrick » Fri Aug 19, 2016 8:11 am

I'm loving that power feed! £100! I didn't know such things existed for retro fit. Brilliant.
I'd have been happy to snatch your hand off for that lovely little Myford, but the timing was wrong. It's one of the nicest set ups I've seen, with the inverter and DRO. Very nice!
But I've been given notice on my rented workshop, so I'm building one at the back of my house. The slab is going down now.
One day I'll have myself a small lathe and a mill :)

User avatar
delw
Posts: 556
Joined: Thu May 07, 2009 11:53 am
Current ride: BMW F900 XR
Location: Leeds

Re: Garage Talk...........

Postby delw » Tue Oct 04, 2016 1:31 pm

Nice to see consistency in motorcycle manufacturing and assembly. Anna's MT-07 needs a new tyre. OK, 5 mins to remove it and take it to shop. Nah.
2 years old (we've had it a year) and axle never been out or seen any sort of lubricant. Maybe assembly guy just gobbed on it before inserting.
Buell owners should be committed (but not for life) ;-)
