No idea if your box is knackered or not, but my '47 JAP/Enfield was raced for 5 seasons with a dry clutch (designed to be wet) and the primary chain was lubed with 2 drips per minute (always thrashed off the line in 2nd gear, with loads of slipping, to keep the wheel down ) My Duc 1198 puts 170HP/97 ft/lb through a dry clutch too - the plates are the same as the 848 wet clutch.

_________________
If your dreams don't scare you, they are not big enough.

I wired mine as soon as I got my xb, plugs that is. Didn't get a fancy thing though, just small drill bits and some stainless MIG wire


Nate.

Ok, Clutch/plates seem to be fine, wasn't much crud in there either.
Got a drain plug from comino off a 2003 XB which fits fine, and as he said himself, will renew the o ring before I fit it.
Bought some cheap oil to flush things out with before putting the proper stuff in, and a new primary tensioner should arrive from HD Edinburgh on Friday, hopefully. It cost £27, including postage.
So....should know by this weekend if I'll be posting a 'Breaking XB' thread or not

and ta for lock wire tip Nate

Fingers crossed for you. There good engines.

I've always put a few winds of PTFE tape on the threads of sump bolts- They never leak and it helps bind the thread so they behave like nyloc nuts. just leave the first couple of threads clear so none goes in the engine. In fact it works on all the bolts on the bike!

_________________
aka DrBagiva, DrBusqvarna, Uncle Knobhead

I'll second that, I wired all the important bits on my Cyclone.

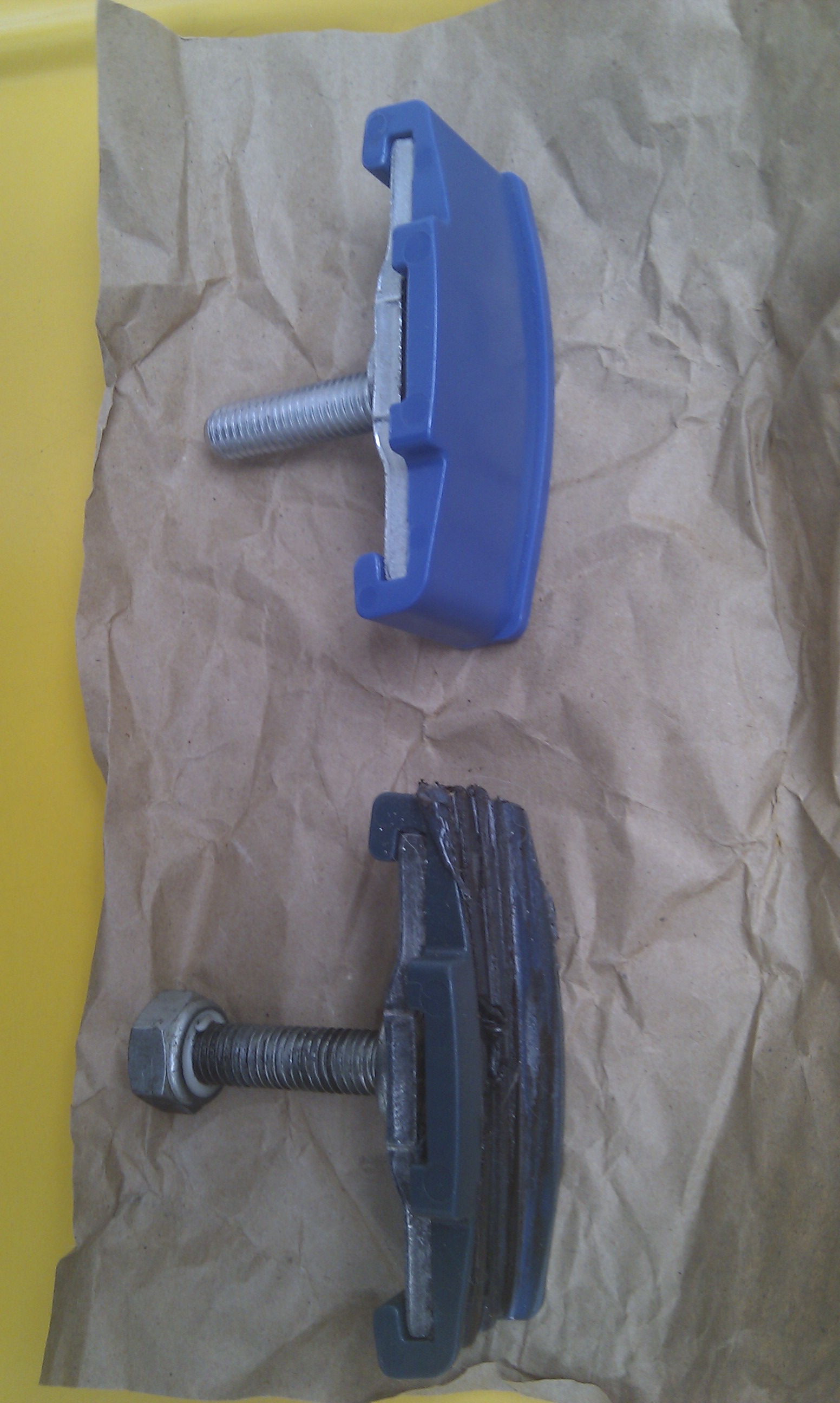

Spot The Difference


HD Edinburgh took 4 days after they took delivery of the tensioner before they posted it to me
Tensioner fitted, primary casing etc all back together, All spilled oil washed off, brakes cleaned off with proper cleaner, and extremely contaminated pads junked & replaced. Plugs wired and bike ready to test

Ok, mostly smiles
Did a quick 20 mile round trip (for dog food!), and seems I have escaped the worst case scenario. Left my earplugs out, but to be honest, it was so flamin' windy here, I couldn't hear the engine at all until I stopped again anyway.
Changed up/down the box ok, and I loaded and unloaded each gear in turn, No problems. Will run it for another tank of fuel, then drain off the cheap oil and check chain tension etc. Am breathing a sigh of relief now though

However my 'new' o ring on the drain plug obviously wasn't good quality, as it's leaked, And I discovered that I must have had the clutch adjusted pretty poorly before this all happened, as it felt way better today. Also (if it aint broke, don't fix it) I will be putting my gear lever back to where it was, Raising it up a spline or two didn't make it any comfier, doh.

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

Reff: drain plug if its leaking then this to me would indicate why it fell out in the first place ie. worn or damaged threds in the primary case. Did you screw the plug in thight whils case was off?
Glad to hear its OK.

Nope, plug went in after case was replaced. Def the o ring at fault, It appears it was too 'fat' and has fouled at the edges and thus didn't seal. Easy fix

I know about an xb that had no oil in the primary for almost 100 kilometers
and all was still okay!
So let's hope that you are lucky to!?

_________________
The sound of a V-twin engine braking is music to my ears!!

Pleased for ya m8

_________________
xxxx

Excuse ridiculous update time guys/girls,
I eventually got decent RevTech oil back in the Primary today (maybe 300-400 miles since my last update) and surprised at how little shite came out with the cheap gear oil,
Definitely got away with it, Only minor tensioner adjustment needed, and it's not slightly worn
