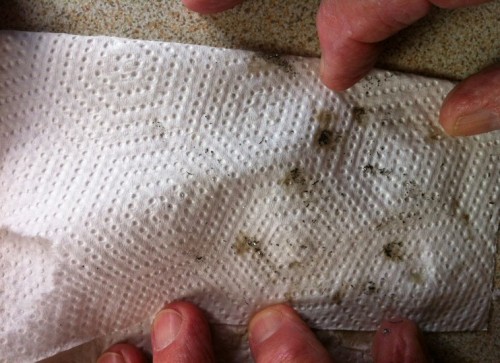

Some pictures of metal fragments in oil tank,
and the engine removed.

Can't get headers of at the moment need to get some heat on front nuts

Can you tell me the procedure for removing the cam cover as l want to check the gears and oil pump before I decide my next move.

You must unload the pressure from the cams before removing the cover ....this is done by removing the rocker boxes and arms whilst that cylinders valves are in the closed position the second cylinder can then be left at tdc with it's valves unloaded if you don't want to remove both sets .

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

Ok thanks for that.

You can save yourself much trouble by just pulling the oil pump and peeking through that hole.

_________________
"It is often said that before you die your life passes before your eyes. It is in fact true. It's called living."
Terry Pratchett

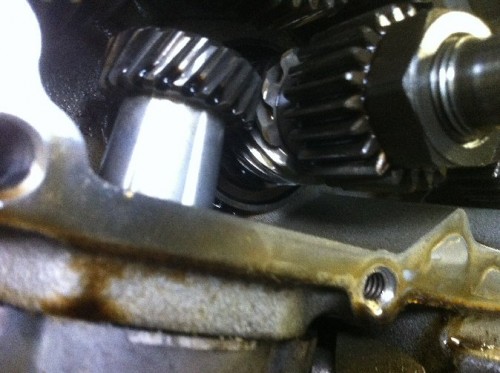

Cam gears look ok.

Could anybody tell me what socket is needed for the head bolts

I can't, but just in case you haven't noticed, and no-one has pointed it out yet, we have service manuals available for download as a sticky at the top of this section http://www.ukbeg.com/pash/2008%20Buell%20XB/mainTOC.pdf

_________________
Wear the fox hat

Head bolts are 1/2" AF 12 point (double hex), a 1/2" AF double hex socket will fit.

What does your oil pump gear look like out of interest?

_________________
08 Specialized Langster

hopefully not like this

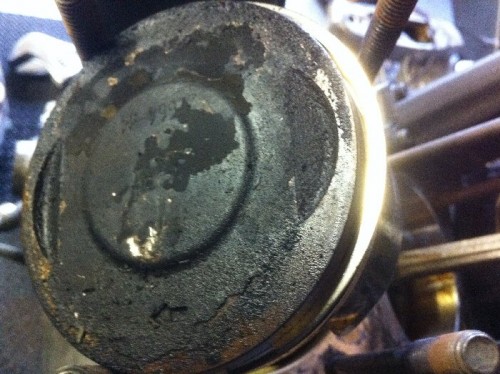

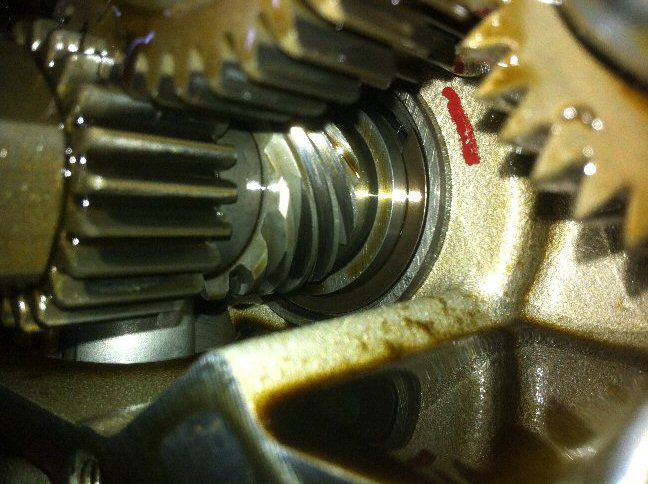

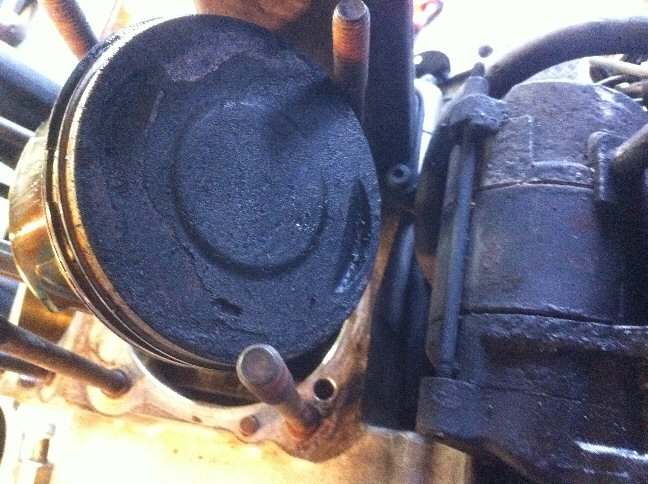

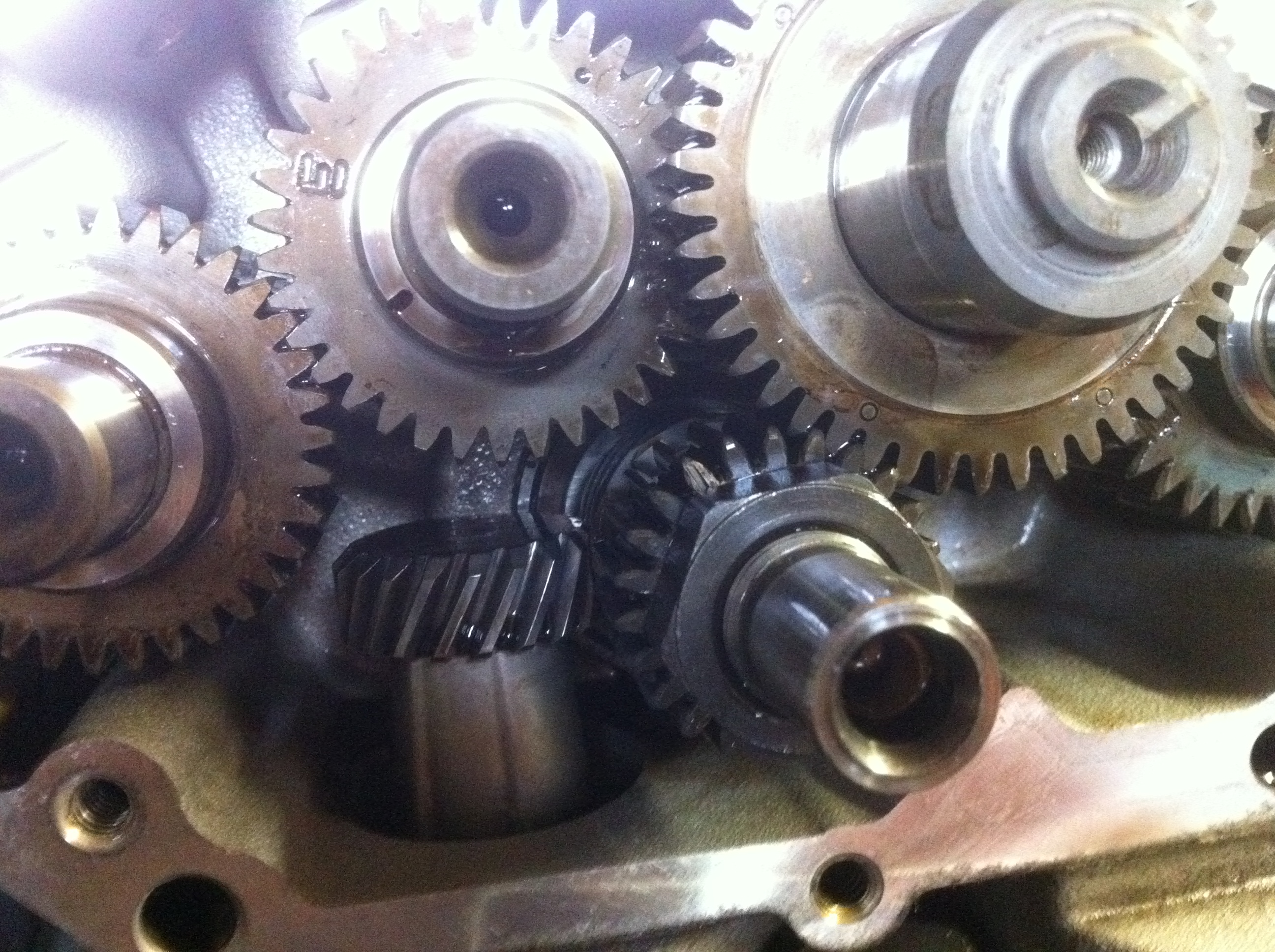

Heads and barrels removed, more pictures of oil pump gears all look fine.

Don't seem to be any play in between con rods and crank?

Is it my imagination or does that oil pump gear look worn?

_________________
08 Specialized Langster

It does look thin on it's teeth and definitely wants replacing on rebuild but doesn't look like it's caused any other problems.

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

On second investigation there is play on front cylinder bottom end.

What a great opportunity. Check out Willy's post on what he and Brian ate doing with the big end on his crank for sizing or try powerglides for a crank rebuild.

_________________
08 Specialized Langster

My next step remove clutch can I pull it off as a unit, or do I need the tool to split it
