Bonzo
 Post subject: Forcewinder spacer
PostPosted: 22 Nov 2016 10:12
Offline
User avatar

Joined: 06 May 2009 13:55
Posts: 4508
Current ride: GTR1000 Rocket,550GT
Location: Joondalup
Now that it's running again I'm fitting a Forcewinder (courtesy of bugsinmateeth :yup: )

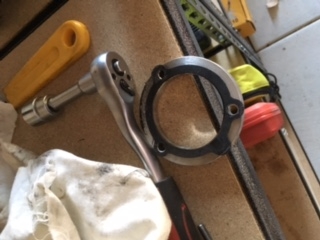

Anyway, as with the pro series filter, there is a spacer. As far as I can see the only purpose of this is to create one extra potential leak path, but as someone has gone to the trouble of making it I guess it has a purpose. Is it essential for some reason, such as creating a perfect intake length or something, or am I OK to leave it out :?: :?


Attachments:
spacer.jpg [ 43.96 KiB | Viewed 1090 times ]

_________________
Wear the fox hat
Top
  Send private message
Reply with quote
Graeme1203
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 10:19
Offline
User avatar

Joined: 01 Oct 2013 12:05
Posts: 902
Current ride: 97 M2, 09 XT
Location: Sunny Suffolk
I too have a similar spacer (pro race filter) sitting on a shelf. Never fitted it myself, not sure why I didn't. Will be interested in others responses to know if I should've.

_________________
Today my pet mouse Elvis died :cry: ..................He was caught in a trap
There are two types of people in this world, those that can extrapolate
Top
  Send private message
Reply with quote
Mickrick
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 10:45
Offline

Joined: 16 Nov 2011 20:57
Posts: 1028
Current ride: Pushbike!
Location: Spain
Mmmm...popcorn...
Top
  Send private message
Reply with quote
pash
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 11:14
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
I think that spacer is for the pro race air filter to fit not the forcewinder

_________________
08 Specialized Langster
Top
  Send private message
Reply with quote
Bonzo
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 11:27
Offline
User avatar

Joined: 06 May 2009 13:55
Posts: 4508
Current ride: GTR1000 Rocket,550GT
Location: Joondalup
pash wrote:
I think that spacer is for the pro race air filter to fit not the forcewinder


Hmm, yes, it is identical. Maybe it was just left on on bugs's X1. I'll just leave it out and see what happens then :P

_________________
Wear the fox hat
Top
  Send private message
Reply with quote
Maz
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 11:55
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8643
Location: Manchester
Force supply that spacer with their XR2 kits for X1's.......it moves the assembly away from the frame in order to accommodate the shit billet breather system :)

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR
Top
  Send private message
Reply with quote
Bonzo
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 12:10
Offline
User avatar

Joined: 06 May 2009 13:55
Posts: 4508
Current ride: GTR1000 Rocket,550GT
Location: Joondalup
Maz wrote:
Force supply that spacer with their XR2 kits for X1's.......it moves the assembly away from the frame in order to accommodate the shit billet breather system :)


Aha, it's also about 5mm thinner than the pro series one. I noticed bug's bolts have a different thread pitch to mine, is that because I've got a Mikuni and he didn't :?:

_________________
Wear the fox hat
Top
  Send private message
Reply with quote
Maz
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 12:15
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8643
Location: Manchester
Fuel injection throttle body has metric threads, carbs are imperial.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR
Top
  Send private message
Reply with quote
Bonzo
 Post subject: Re: Forcewinder spacer
PostPosted: 22 Nov 2016 12:22
Offline
User avatar

Joined: 06 May 2009 13:55
Posts: 4508
Current ride: GTR1000 Rocket,550GT
Location: Joondalup
Oh yes, forgot X1's have FI :oooops: (haven't seen one in the flesh for about 10 years lOl )

_________________
Wear the fox hat
Top
  Send private message
Reply with quote
Bonzo
 Post subject: Re: Forcewinder spacer
PostPosted: 23 Nov 2016 12:06
Offline
User avatar

Joined: 06 May 2009 13:55
Posts: 4508
Current ride: GTR1000 Rocket,550GT
Location: Joondalup
Just been out for the first time with the forcewinder. Soooo much better not having the air filter in the way of my knee all the time 8-)

_________________
Wear the fox hat
Top
  Send private message
Reply with quote
rik
 Post subject: Re: Forcewinder spacer
PostPosted: 23 Nov 2016 13:12
Offline
User avatar

Joined: 06 May 2009 19:42
Posts: 3152
Current ride: M2 Razorback
Location: Mouth of the Port in the Shire of Hamp
Bonzo wrote:
Just been out for the first time with the forcewinder. Soooo much better not having the air filter in the way of my knee all the time 8-)

You lanky Pommy bar steward! (exactly how I felt when I first fitted mine ;) )
