Hi guys.

I have owned my Buell X1 Lightning ( Millenium Limited Edition with S3 Thunderbolt tank, altered seat, race ECU, Scorpion stainless race exhaust system, Blue Streak paintwork, polished alloy parts, Racewinder air cleaner and hand made "ace" handlebars ) from new in 2000.

The rubber isolater which supports the end of the Scorpion stainless muffler under the rear of the chaincase broke today whilst I was riding the bike and the first thing I knew about it was when the exhaust note changed and I heard the rear of the muffler dragging on the tarmac under the bike.

The stainless steel tubular part that attaches to the outlet of the standard exhaust header and connects it to the stainless muffer had, consequently, fractured almost all the way around its circumference under the strain and I managed to limp home after having tied the muffler in place.

Can anyone tell me where I can obtain a replacement for this broken stainless connecting pipe please? I should be able to pick up a replacement isolator from any decent auto centre.

Regards

Richard
Top
  Send private message
Reply with quote
kevmean
PostPosted: 31 Jul 2011 22:20
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind
try scorpion ...when mine fractured a few years ago they replaced it free of charge.

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.
Top
  Send private message
Reply with quote
Montyhound
PostPosted: 01 Aug 2011 14:29
Offline
User avatar

Joined: 31 Jul 2011 20:44
Posts: 85
Current ride: X1 Lightning
Location: Warwickshire
Thanks. I emailed Scorpion last night but have yet to hear from them. Maybe a phone call would be in order?

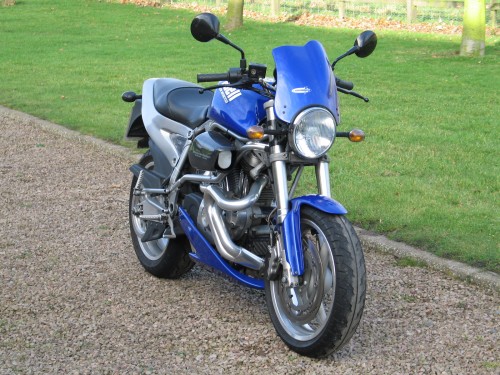

Attachment:
Buell X1 Lightning special 4.jpg
Buell X1 Lightning special 4.jpg [ 240.1 KiB | Viewed 1840 times ]

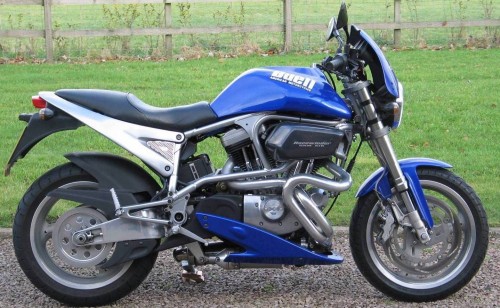

Attachments:
Scorpion exhaust Buell X1.JPG
Scorpion exhaust Buell X1.JPG [ 405.29 KiB | Viewed 1840 times ]
Top
  Send private message
Reply with quote
Montyhound
PostPosted: 01 Aug 2011 16:03
Offline
User avatar

Joined: 31 Jul 2011 20:44
Posts: 85
Current ride: X1 Lightning
Location: Warwickshire
What a great company Scorpion Exhausts are!

I spoke to them today and they stated that they offer a lifetime guarantee on their products for the benefit of the original purchaser and, so long as I can demonstrate that I qualify in this regard, they will either repair my broken part or manufacture a new one for me even though they no longer have their original jigs.
Top
  Send private message
Reply with quote
mcrbuelligan
PostPosted: 01 Aug 2011 17:03
I was once told the same by another exhaust company Quill - I soon found out the truth when the pipe fell apart, but if Scorpion are a stand up company then go for it only time will tell.
Top

Reply with quote
kevmean
PostPosted: 02 Aug 2011 13:50
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind
Well scorpion stood by their word with mine ;)

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.
Top
  Send private message
Reply with quote
pash
PostPosted: 02 Aug 2011 20:18
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
Did that tank fit straight on? Why did you change?

_________________
08 Specialized Langster
Top
  Send private message
Reply with quote
kevmean
PostPosted: 02 Aug 2011 20:28
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind
pash wrote:
Did that tank fit straight on? Why did you change?

I've got one of those tanks for muffin ....just never got around to fitting it ;-) ....my reason was to get rid of the tank infills and the extra capacity .

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.
Top
  Send private message
Reply with quote
Maz
PostPosted: 02 Aug 2011 20:58
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8643
Location: Manchester
pash wrote:
Did that tank fit straight on? Why did you change?


No......rear mount is different and seat interface would require a 're-model', also the frame rails that the tank sits on dont match exactly.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR
Top
  Send private message
Reply with quote
Montyhound
PostPosted: 03 Aug 2011 16:03
Offline
User avatar

Joined: 31 Jul 2011 20:44
Posts: 85
Current ride: X1 Lightning
Location: Warwickshire
To answer the questions posted regarding the S3 Thunderbolt tank fitted to my X1.

Although outwardly identical to the Cyclone tank, the S3 Thunderbolt is, like the X1 Lightning, fuel injected and it's tank is made to take the integral fuel pump.

The male "hold down" projection at the front of the S3 tank slips perfectly into the female retainer just behind the headstock of the X1 frame and supporting the tank properly only requires a few rubber spacers ( new S3 parts ) on the frame rails either side of the front cylinder plus a standard S3 rubber isolator in the rear "tongue" of the tank where it is clamped down to the frame in front of the seat.

I had to modify the steel bracket ( designed to hold down the rear of the black X1 fuel cell ) that secures the rear of the S3 tank and I then cut the front 3" off the moulded plastic seat base before remoddeling it ( slightly longer than the bit that I had cut off ) in fibreglass to fit the entirely different shape of the rear of the S3 tank and I then had it professionally re-foamed and re-covered in perforated black PVC.

I went to all this trouble because the result is neater than fitting aftermarket infill pieces to the side skirts of the X1 fuell cell cover as required when removing the bulbous X1 side scoops and the S3 tank is of slightly greater capacity ( an extra 3 litres ) than that of the X1.

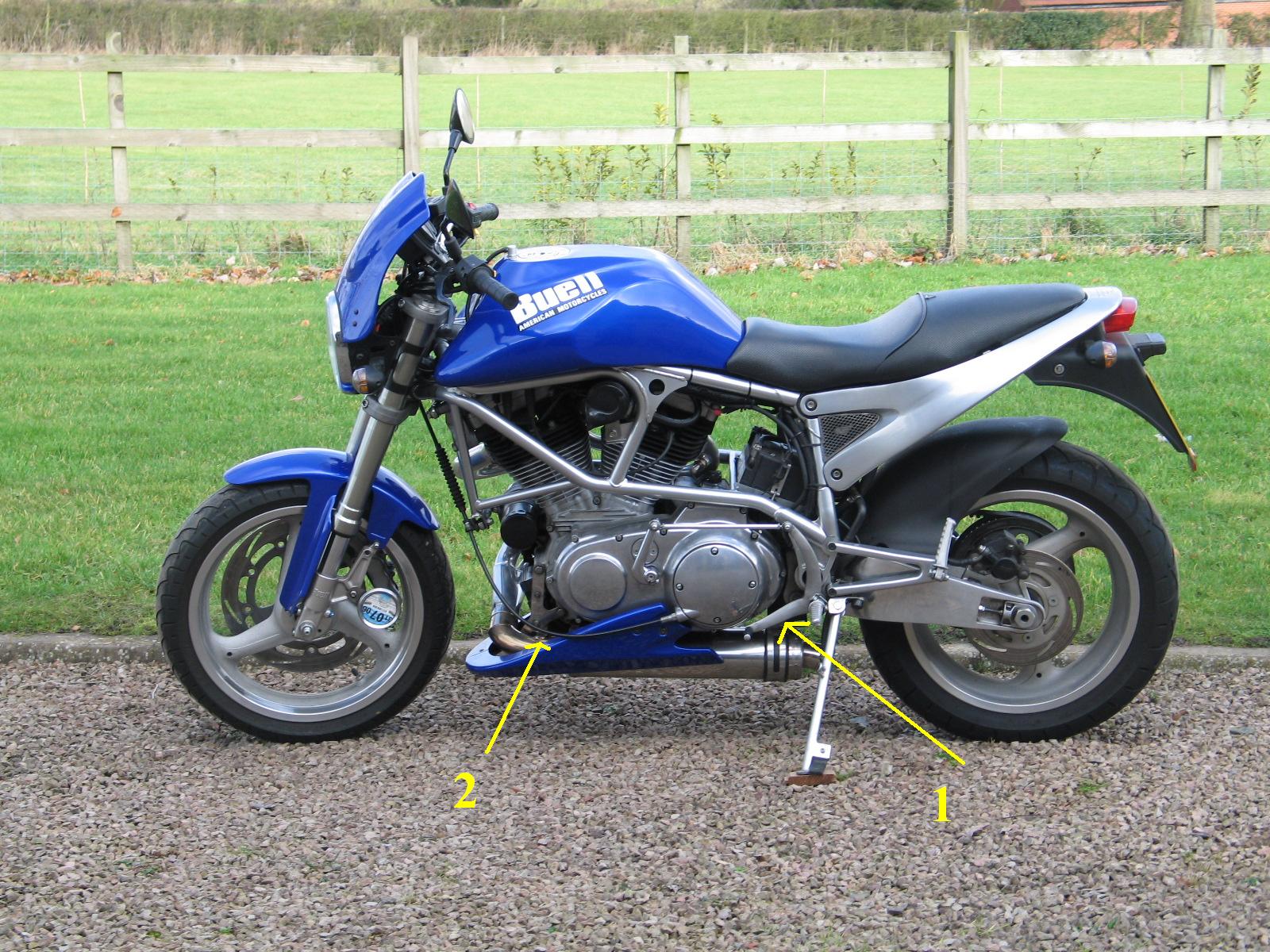

Attachments:
Buell X1 Lightning special 003.jpg
Buell X1 Lightning special 003.jpg [ 883.55 KiB | Viewed 1746 times ]
Top
  Send private message
Reply with quote
Nutah
PostPosted: 03 Aug 2011 16:23
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 11000
Current ride: X1 2001
Location: southampton
looks a nice neat job well done

_________________
Feros Ferio
Top
  Send private message
Reply with quote
pash
PostPosted: 03 Aug 2011 17:14
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
Nice write up, would look great in the How To section...

Nice looking bike too...

Thanks

_________________
08 Specialized Langster
Top
  Send private message
Reply with quote
Adam
PostPosted: 03 Aug 2011 17:51
Offline
Moderator
User avatar

Joined: 15 Apr 2009 17:25
Posts: 11772
Location: Oswestry
:yt: :yup:

_________________
If your dreams don't scare you, they are not big enough.
Top
  Send private message
Reply with quote
chris(madrid)
PostPosted: 03 Aug 2011 19:47
Offline
User avatar

Joined: 15 May 2009 17:34
Posts: 3567
Location: The borders of insanity
Montyhound wrote:
Although outwardly identical to the Cyclone tank, the S3 Thunderbolt is, like the X1 Lightning, fuel injected and it's tank is made to take the integral fuel pump.
Yes and no - Not all S3's are FI. In fact I'd guess the majority are not. Mine most certainly is not.

_________________
Sept 2017. Email will find me.
Top
  Send private message
Reply with quote
Montyhound
 Post subject: S3 fuelling system
PostPosted: 04 Aug 2011 15:29
Offline
User avatar

Joined: 31 Jul 2011 20:44
Posts: 85
Current ride: X1 Lightning
Location: Warwickshire
Hi Chris ( Madrid ).

That's an interesting comment about your S3 not being fuel injected.

My copy of the 1999 Buell brochure covering the M2 Cyclone, S3 Thunderbolt and X1 lightning ( which had just replaced the ( carburated?? ) S1 Lightning shows the M2 as being carburated and the S3 and X1 having identical DDFI engines. I'm assuming, therefore, that pre-1999 S3s were carburated and had the same "skinny tailed" fuel tank as the M2 and S1?

Richard
