Speedo "Error"
https://ukbeg.com/forum/viewtopic.php?f=8&t=13503		 Page 1 of 1
Author:  Graeme [ 31 Jan 2012 21:17 ]
Post subject:  Speedo "Error"
I have replaced the engine in my 2004 Firebolt with a 2007 Ulysses one. :D Almost all goes very well but I seem to be travelling much faster than before :twisted: .....I have cross checked with another couple of bikes and the Speedometer is reading around 12% fast. The instrument is original to the bike. I reckon that I have missed something in the ratios. I wondered if anyone has any experience of this and had identified a remedy?
......wish the weather was a bit better. So many miles still to cover.
Author:  pash [ 31 Jan 2012 21:30 ]
Post subject:  Re: Speedo "Error"
5th gear changed in 2006, so too did the speedos...

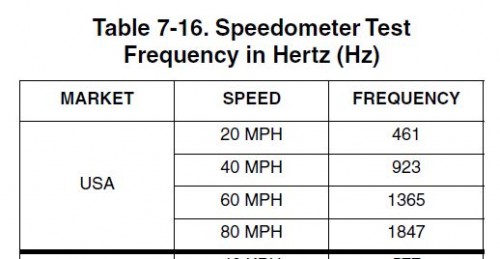

In 2005:
Attachment:
speedo 2005.jpg
speedo 2005.jpg [ 22.36 KiB | Viewed 764 times ]


In 2006:
Attachment:
speedo 2006.jpg
speedo 2006.jpg [ 16.82 KiB | Viewed 764 times ]
Author:  Graeme [ 05 Feb 2012 11:07 ]
Post subject:  Re: Speedo "Error"
Pash,

Thank you very much - as ever for the calibration data. ;)
I was going to look for a post 06 XB12R or Ulysses speedo but that will be wrong, because the belt ratio is different. I am considering and in-line adjuster from Dakota Digital because it looks like whatever I do I will need to adjust the calibration someway of another. Any experience of thses things?
http://www.dakotadigital.com/index.cfm/ ... prd238.htm

Of course I may just be going around the long way - I usually do......

All the best,
Author:  gunter [ 05 Feb 2012 11:11 ]
Post subject:  Re: Speedo "Error"
Quote:
I was going to look for a post 06 XB12R or Ulysses speedo but that will be wrong, because the belt ratio is different.


Secondary transmission ratio is the same for all XB since 2004.
Author:  pash [ 05 Feb 2012 11:16 ]
Post subject:  Re: Speedo "Error"
:yt:

XBs are simple...
Author:  Centium [ 20 Feb 2012 17:35 ]
Post subject:  Re: Speedo "Error"
I never got an answer when I had the same problem and asked the same question about 4 years ago. I bought one of these: http://www.speedohealer.com
