 Post subject: Spark plug
PostPosted: 15 Mar 2013 22:56
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind

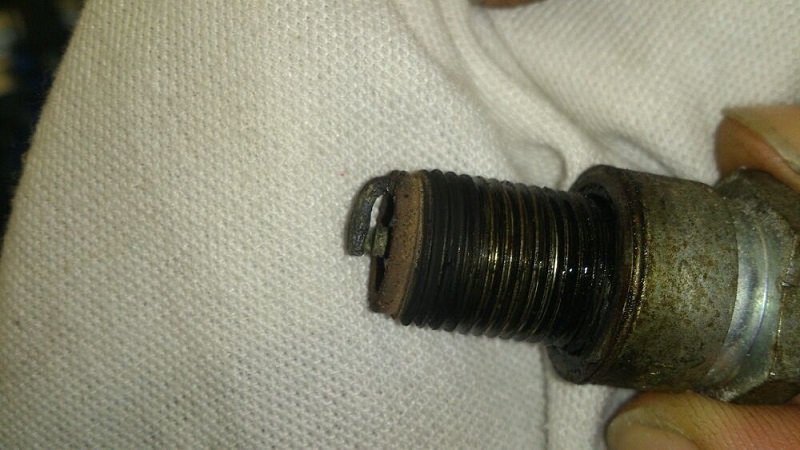

So what do we think caused this on Harrys TZR50 yesterday ? had to go and rescue him with the trailer after his bike stopped on the main road ....................In his words it suddenly lost power then cut out............ upon investigation I found the spark plug bridged by something that appeared to be welded across electrodes ................... bike still had normal compression and looking in the plug hole the top of the piston looked in very good condition as far as I can see. Put a replacement plug in and bike seems to sound and run as normal.
So any of you two smoke fans .........what do you think? ..............imminent melt down or nothing to worry about lOl


Attachments:
spark plug.jpg
spark plug.jpg [ 114.32 KiB | Viewed 555 times ]

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.
Top
 Post subject: Re: Spark plug
PostPosted: 15 Mar 2013 23:02
Offline
User avatar

Joined: 06 May 2009 16:03
Posts: 4389
Current ride: S1w X1 1125CR
Location: NNW of Sarfampton
Methinks Harry should carry a spare plug and plug spanner iike wot all yoof used to :old: Only way home from the pub when underaged drinking in days of yore. :yup:

_________________
I'm a Hornithologist, I get excited by exotic birds.........


Top
 Post subject: Re: Spark plug
PostPosted: 15 Mar 2013 23:08
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind
Biggest problem is all the plastics that make what should be simple tasks take an age to check lOl ...long live naked bikes lOl

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.


Top
 Post subject: Re: Spark plug
PostPosted: 15 Mar 2013 23:11
Offline
Moderator
User avatar

Joined: 15 Apr 2009 17:25
Posts: 11772
Location: Oswestry
Strikes me that he's been thrashing the tits off it 8-) 8-)

Looks like it might like a grade harder plug :? Is the timing bang on? I don't think it's a mixture problem, but this is just a guess :?

I think the thrashing theory is far more likely lOl

_________________
If your dreams don't scare you, they are not big enough.


Top
 Post subject: Re: Spark plug
PostPosted: 15 Mar 2013 23:22
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind
I did jet it up a few weeks ago because it seemed a bit weak ........... wasn't sure what's been done to it but found it had already got a 92 main jet instead of the standard 88 (now running 96)......... since realised that somebody has removed a cone from the expansion chamber inlet and I think maybe changed the ecu some how because apparently standard they only rev to about 7K this one revs to about 10500 ............or off the clock downhill according to H lOl lOl so I think the thrash the tits off it could possibly be correct lOl

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 03:54
Offline
User avatar

Joined: 07 Nov 2011 18:10
Posts: 4231
Current ride: Buell ulysses
Location: Telford
kevmean wrote:
thrash the tits off it could possibly be correct lOl


Like father like son lOl

_________________
Buell Ulysses XB12X 06/08


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 09:52
Offline
Think Pink
User avatar

Joined: 07 Jun 2010 00:37
Posts: 3777
Current ride: Awesome Ulysses & X1
Location: balderton, newark
barney wrote:
kevmean wrote:
thrash the tits off it could possibly be correct lOl


Like father like son lOl

:yup: :rotfl: :rotfl: :rotfl: :rotfl:

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 10:19
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
It was probably a drop of aluminium that got through the air filter then took a fancy to the electrode gap...

I would get a borescope down there and look for signs of erosion on the crown and head...

_________________
08 Specialized Langster


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 10:47
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7259
Current ride: 1991 RS1200 westwind
pash wrote:
It was probably a drop of aluminium that got through the air filter then took a fancy to the electrode gap...

I would get a borescope down there and look for signs of erosion on the crown and head...


I would if I had access to one lOl

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 12:08
Offline
Moderator
User avatar

Joined: 15 Apr 2009 17:25
Posts: 11772
Location: Oswestry
kevmean wrote:
pash wrote:
It was probably a drop of aluminium that got through the air filter then took a fancy to the electrode gap...

I would get a borescope down there and look for signs of erosion on the crown and head...


I would if I had access to one lOl



As it's a stink wheel, it'd be a lot easier just to whip the lid off and have a peek at the crown. Like Pash said, it may some contamination from the piston skirt etc that's been pushed through the inlet port :?

(Because he's been thrashing it lOl )

_________________
If your dreams don't scare you, they are not big enough.


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 12:13
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
I was being fasicious when I mentioned the air filter, the bottom line is it has come from somewhere in the engine...

_________________
08 Specialized Langster


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 12:19
Offline
Moderator
User avatar

Joined: 15 Apr 2009 17:25
Posts: 11772
Location: Oswestry
pash wrote:
I was being fasicious when I mentioned the air filter, the bottom line is it has come from somewhere in the engine...


:yt: Stage 1 tuning for 16yr olds in this neck of the woods, is ripping out the air filter lOl lOl

_________________
If your dreams don't scare you, they are not big enough.


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 14:59
Offline

Joined: 07 May 2009 13:35
Posts: 50
Used to be called Plug Whiskering and was a common phenomenom in "petroil" days.
Not sure if anyone really knew what caused it but often put down to type of oil used and sometimes petrol used. Have you used a different oil recently or filled up from a different garage? Never known it to cause any damage so I wouldn't worry unduly. Carry a spare plug and spanner and put it down to "Character"!!!


Top
 Post subject: Re: Spark plug
PostPosted: 16 Mar 2013 22:02
Offline

Joined: 01 Nov 2012 21:42
Posts: 297
Current ride: Cyclone m2 1998
Location: Bedfordshire
Try hotter plug or iridium one, better to run rich than lean, take exhaust off look in hole at side and bottom of piston, if it still has good compression I wouldn't worry too much about it, I had rd350s for 10 years before I got a buell, no going back now lol

_________________
Ride it like you've stolen it


Top
