Want to use ECMSPY to put the fan on my 08 XB12XT back to only running when needed vs all the time.....in line with the post in the "How to" forum.

Is there a ECMSPY for Dummies (who want to do just one thing)...any simple steps to what to do etc ?

I already have the usb to ECM cable that I used previously when I got a custom map from Twin.

Thanks.
Eric.

_________________
'09 XB12XT
'02 Beta Alp 200
'82 + '83 CX500 euroSports's
'83 CX650 Custom
Green "4 Legged" SUV (now galloping the great plains in the sky !!)

Good question I to am a dummy where ECM Spy is concerned, I to would like to know how to stop my fan running 24/7 when the bikes in motion and return it to running when it gets hot only.
Can anyone list a step by step guide for Dummies? Please

I'll do it but you need ECMSpy for mono or ECMdroid or similar.

I need to know your ECM firmware, e.g. BUE2D, BUE1D, BUEZD

I'll show you how to do it on my 2010 Uly but if you have a different ECM firmware it won't be the same...

_________________
08 Specialized Langster

thanks for the offer I will spark the lap top up over the weekend and have a look
I feel a Site Donation moment come on!

Get it fixed first...

Didn't get round to it last night, will try tonight...

_________________
08 Specialized Langster

Thanks Pash !

I'll be doing it from a windows 7 64bit PC.

Looks like I need to install Mono Version 2.10 runtime environment then ECMSPY on top of that, is that right ?

Not sure of my ECM firmware....HD put on the latest one right before I got a custom map put on by a guy who developed and sold them via Twin in Holland (I just have a K&N filter, everything else standard). Before I got the update at HD my fan didnt run all the time but sometimes ran for a while after I switched the bike off..............after the update this didnt happen.........I want to go back to the way it was ! So maybe I have BUE2D now ??? I can check when I installs the ecmspy sw and try connect it.

In terms of how to do it I really just need an idea of how to use the SW, is the bike turned on or off etc........what is the process ? Do I pull the config off the bike onto the PC then mod it and then push it back to the bike ?

Sorry for the silly questions !

Eric.

_________________
'09 XB12XT
'02 Beta Alp 200
'82 + '83 CX500 euroSports's
'83 CX650 Custom
Green "4 Legged" SUV (now galloping the great plains in the sky !!)

No probs, I'll show you how to do it...

_________________
08 Specialized Langster

I'm looking forward to this Pash, I still haven't got round to using that cable I bought from you.

Right then...

1. Connect your lead up to your bike
2. Turn ignition on and set kill switch to run
3. Fire up ECMSpy for Mono
4. Click on the connect button, top right


On connection, the ECM content will be read by the program. You will see from the bottom left that this is BUE2D.

5. Click on the Limits tab

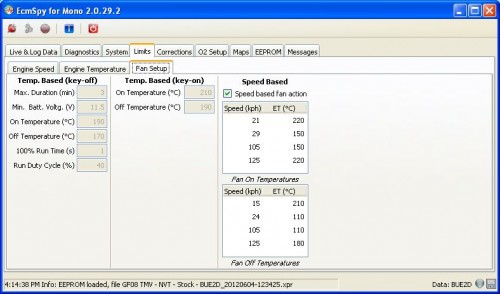

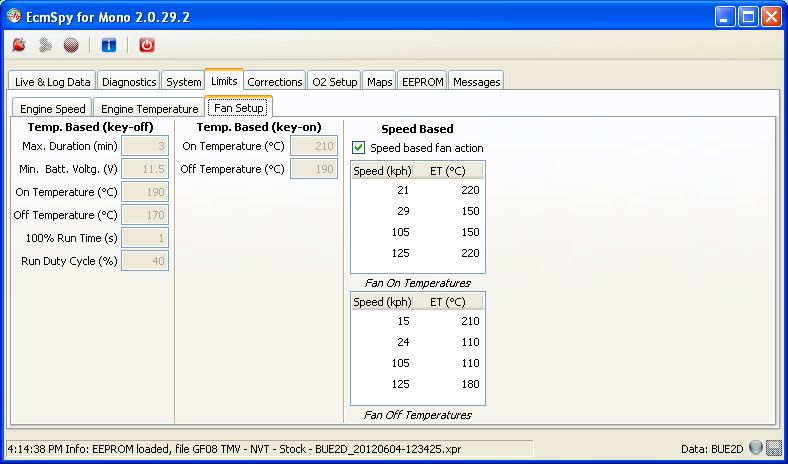

6. Then the Fan Setup tab

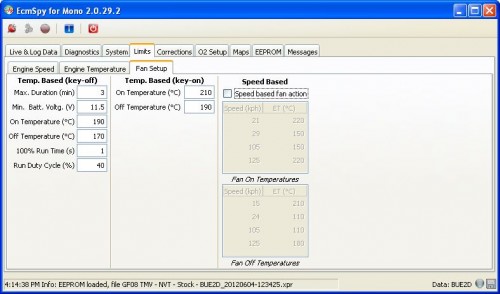

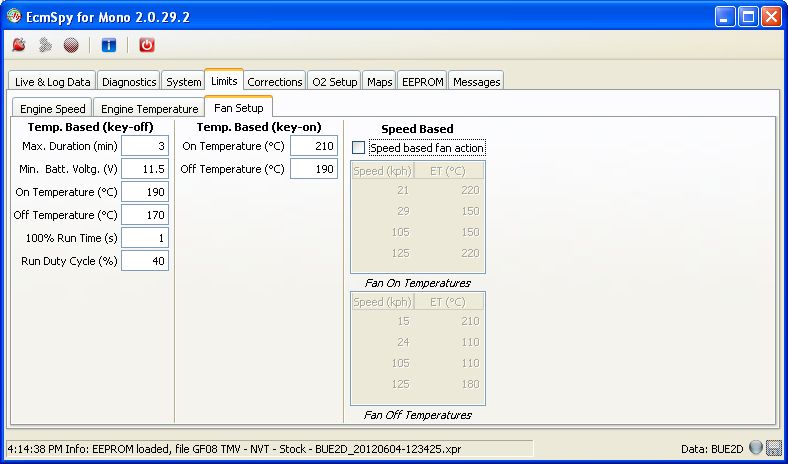

7. Then, deselect the Speed Based tickbox

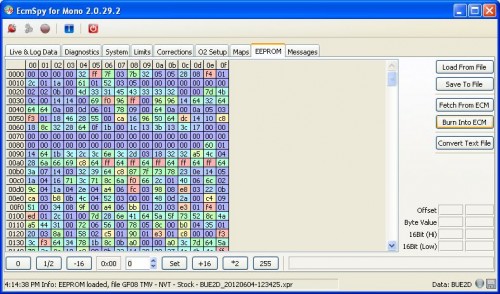

8. Then, go to the EEPROM tab, and click Burn Into ECM


Then disconnect everything and you are done...

_________________
08 Specialized Langster

My spy ware is EcmSpy V.1.12.26 I trust it's not correct? How do I get the correct version

_________________
08 Specialized Langster

Whoa tiger !

You're a step ahead of me, need to install the sw and connect to the ECM to check what version ECM content I have then order the relevant database.

Working on that now. Sent registration etc.

Eric.

_________________
'09 XB12XT
'02 Beta Alp 200
'82 + '83 CX500 euroSports's
'83 CX650 Custom
Green "4 Legged" SUV (now galloping the great plains in the sky !!)

registered on the ecmspy site but haven't received an email back...........tried it again and it tells me I'm registered already ??????????

I've sent an email to the webmaster, does that person be on here too ?

Thanks.
Eric.

_________________
'09 XB12XT
'02 Beta Alp 200
'82 + '83 CX500 euroSports's
'83 CX650 Custom
Green "4 Legged" SUV (now galloping the great plains in the sky !!)

Please check your spam folder. I received copies of your registration mail, so it had been sent.

_________________
"It is often said that before you die your life passes before your eyes. It is in fact true. It's called living."
Terry Pratchett

No, not there - might be the corp email police especially if your from and reply addresses are different....I might try registering from my gmail account.

Thanks.
Eric.
