 Post subject: X1 Earth
PostPosted: 13 Jan 2016 09:43
This is probably a silly question but my electrics are not the best. I cant seem to earth the x1 after rebuilding it. Have all the frame earths cleaned and one on swingarm but the only way I seem to be able to get an earth is to front mount or a head bolt. Am i missing something?

Have loom earthed to top left of frame above battery and negative coming to battery from back left on frame , then the earth strap goes to swingarm from bottom right?

Thanks, David


Top

 Post subject: Re: X1 Earth
PostPosted: 13 Jan 2016 10:03
Offline
User avatar

Joined: 06 May 2009 19:42
Posts: 3170
Current ride: M2 Razorback
Location: Mouth of the Port in the Shire of Hamp
Have you painted/coated the frame? Ensure that the earth rings have good metal to metal contact... :idea:
The frame, the motor/swingarm block and the battery negative terminal must all be connected well (electrically speaking).
Disconnect the positive lead at the battery and then test for resistance across the earthing points ie
i) battery negative lead to battery negative terminal
ii) battery negative lead to motor (bare metal eg head bolt)
iii) battery negative lead to frame (bare metal)
One of these will show a high resistance and lead you to the problem.

_________________
'98 M2 Razorback, it's a keeper.


Top
 Post subject: Re: X1 Earth
PostPosted: 13 Jan 2016 10:28
Swingarm is my problem so, all was powdercoated, i suppose im getting no transfer from frame/engine to swingarm ? although earth strap should be doing that no?


Top

 Post subject: Re: X1 Earth
PostPosted: 13 Jan 2016 12:05
Offline
User avatar

Joined: 06 May 2009 19:42
Posts: 3170
Current ride: M2 Razorback
Location: Mouth of the Port in the Shire of Hamp
Earth strap goes to swing arm block, and from new the motor and swing arm block would've been considered as one (electrically), so an earth connection to the block would also earth the motor. Sounds like you've effectively insulated the swingarm block from the motor lOl
Either run another earth strap to the motor (from either the swing arm block or the battery negative terminal... both a bit messy but a temporary jump lead would at least confirm your theory) or establish a good electrical pathway from block to motor (eg scrape off the paint under one or more of the four connecting stud washers)

_________________
'98 M2 Razorback, it's a keeper.


Top
 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 18:20
Got sorted today with this , thanks for help Rik :-)


Top

 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 18:24
Offline
User avatar

Joined: 29 Apr 2009 19:27
Posts: 927
davelong wrote:
Got sorted today with this , thanks for help Rik :-)

What was the issue?

_________________
Try doing this to yer fueller...........


Top
 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 19:01
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8646
Location: Manchester
Form over function ?

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 19:13
Powdercoat had seperated the swingarm block and engine so I wasn't getting an earth. Got it running today for first time in 3 years :-)


Top

 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 19:21
Offline
User avatar

Joined: 29 Apr 2009 19:27
Posts: 927
davelong wrote:
Powdercoat had seperated the swingarm block and engine so I wasn't getting an earth. Got it running today for first time in 3 years :-)

Good result then.

_________________
Try doing this to yer fueller...........


Top
 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 20:21
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8646
Location: Manchester
Keep tightening those fasteners because as the powder relaxes/gets displaced they will loosen......never, ever coat either a machined face of a fastener seat :idea:

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 20:32

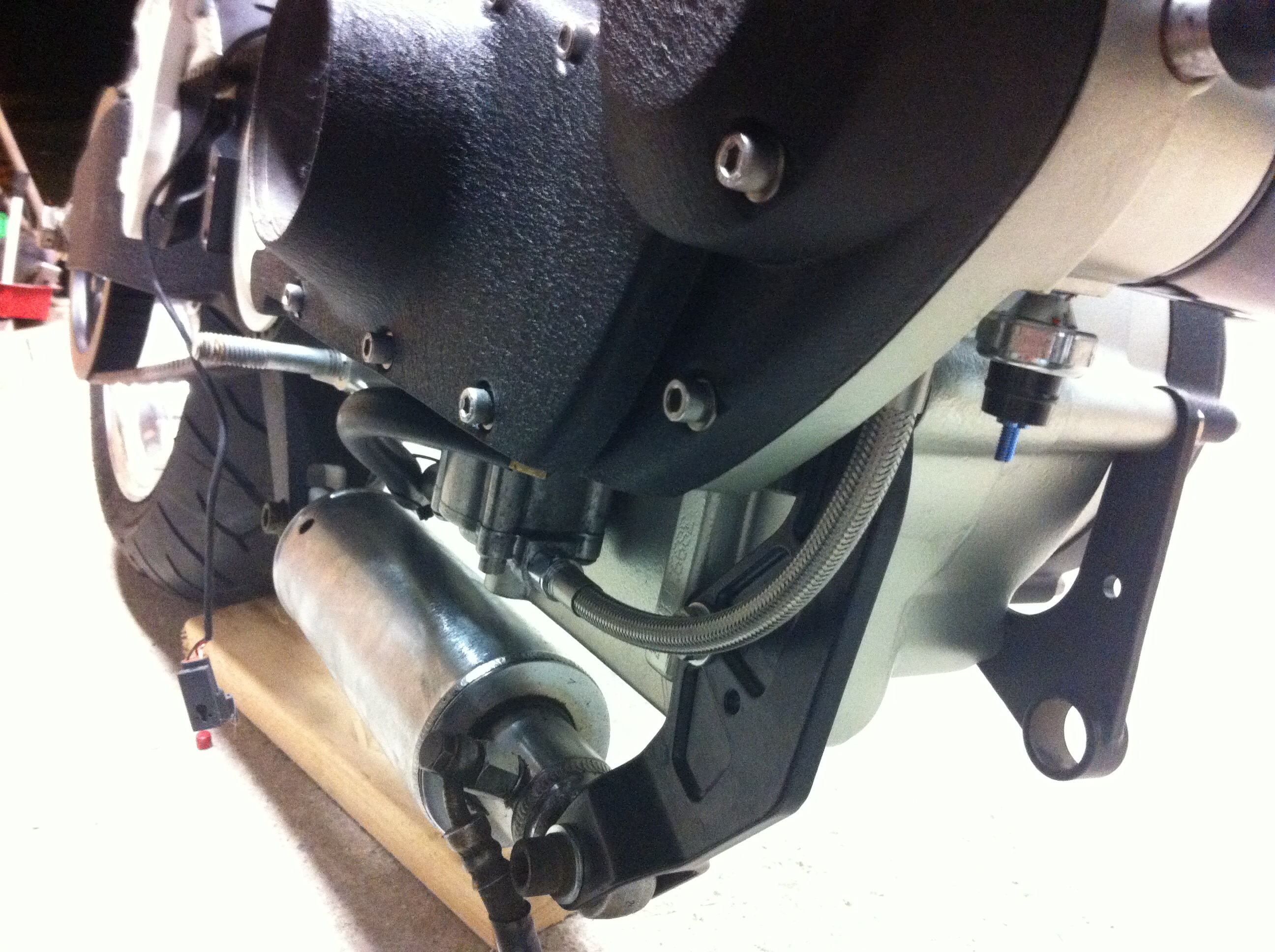

The bike was so bad I never even realised it was a machined face on that swingarm block .the engine side was not painted just the block ,will keep an eye on fasteners tho


Attachments:
image.jpg [ 1.84 MiB | Viewed 655 times ]
Top

 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 20:36

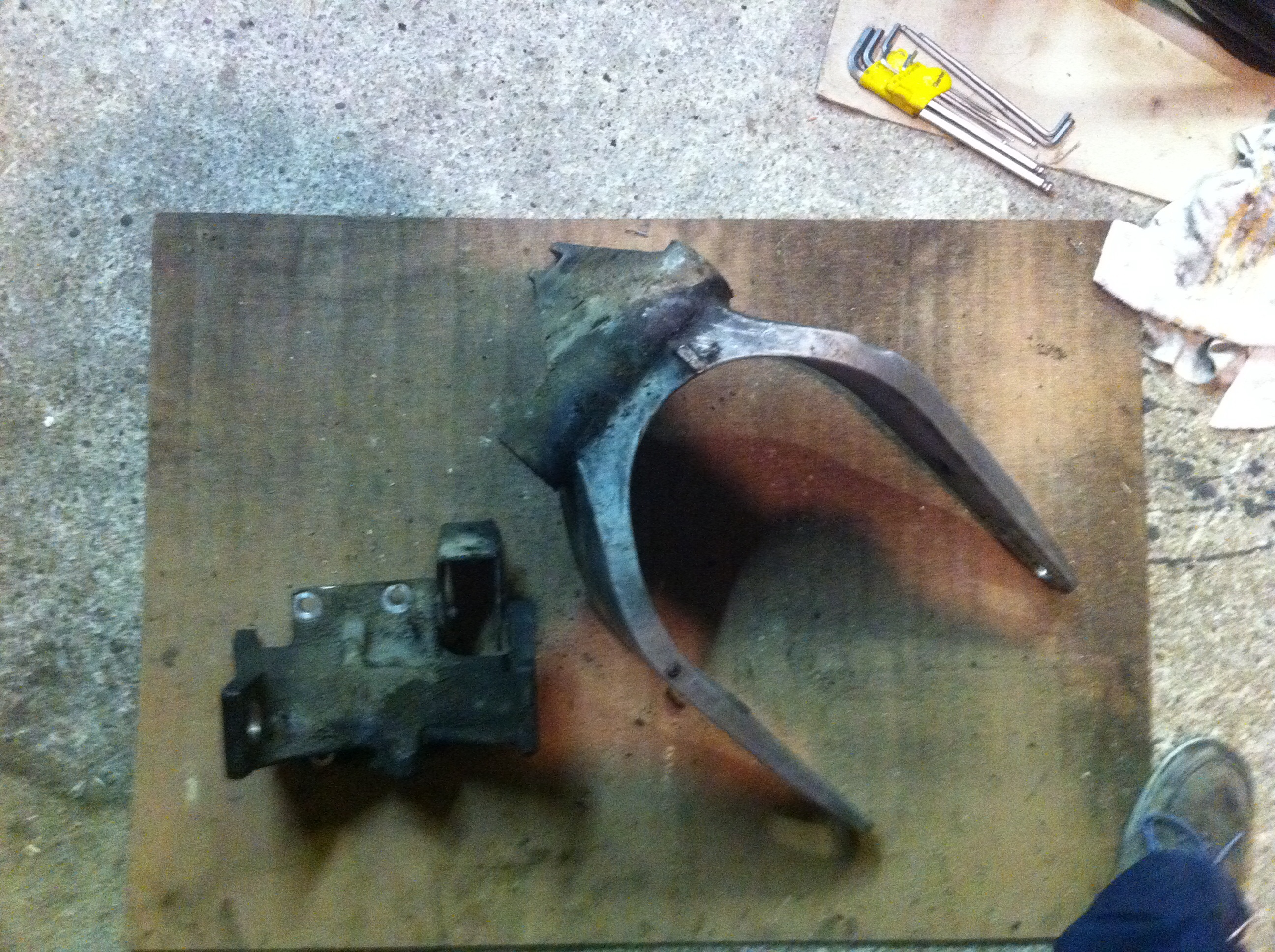

This is it now


Attachments:
image.jpg [ 1.63 MiB | Viewed 654 times ]
Top

 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 20:37

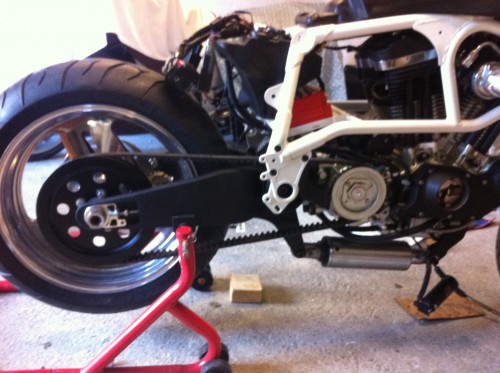

One more


Attachments:
image.jpg [ 1.44 MiB | Viewed 654 times ]
Top

 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 22:11
Offline

Joined: 07 May 2009 21:27
Posts: 1354
Current ride: XB12s,S1WL, Triumph
Location: Glossop in't th'hills
Bloody Hell Dave. That first photo looks quite horrendous. Photo's two and three look MUCH better. It's just knowing the earthing paths that need thinking about. Looking good. :yup:


Top
 Post subject: Re: X1 Earth
PostPosted: 16 Jan 2016 22:32

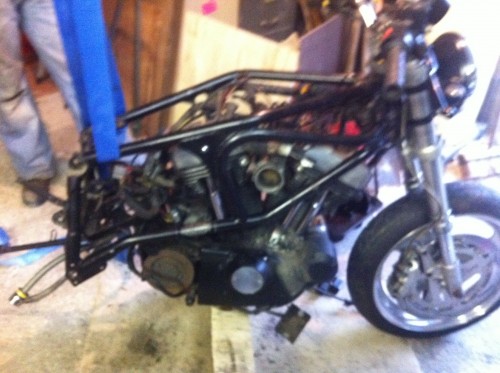

'Twas a wreck Dave to be honest ! I'd be fecked really without yourself , Nick and the help on here. Kinda took it apart arse ways but hopefully I've it back together ok. Another one of the strip down


Attachments:
image.jpg [ 1.69 MiB | Viewed 641 times ]
