 Post subject: X1 exhaust stud missing
PostPosted: 03 Oct 2018 21:58
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002

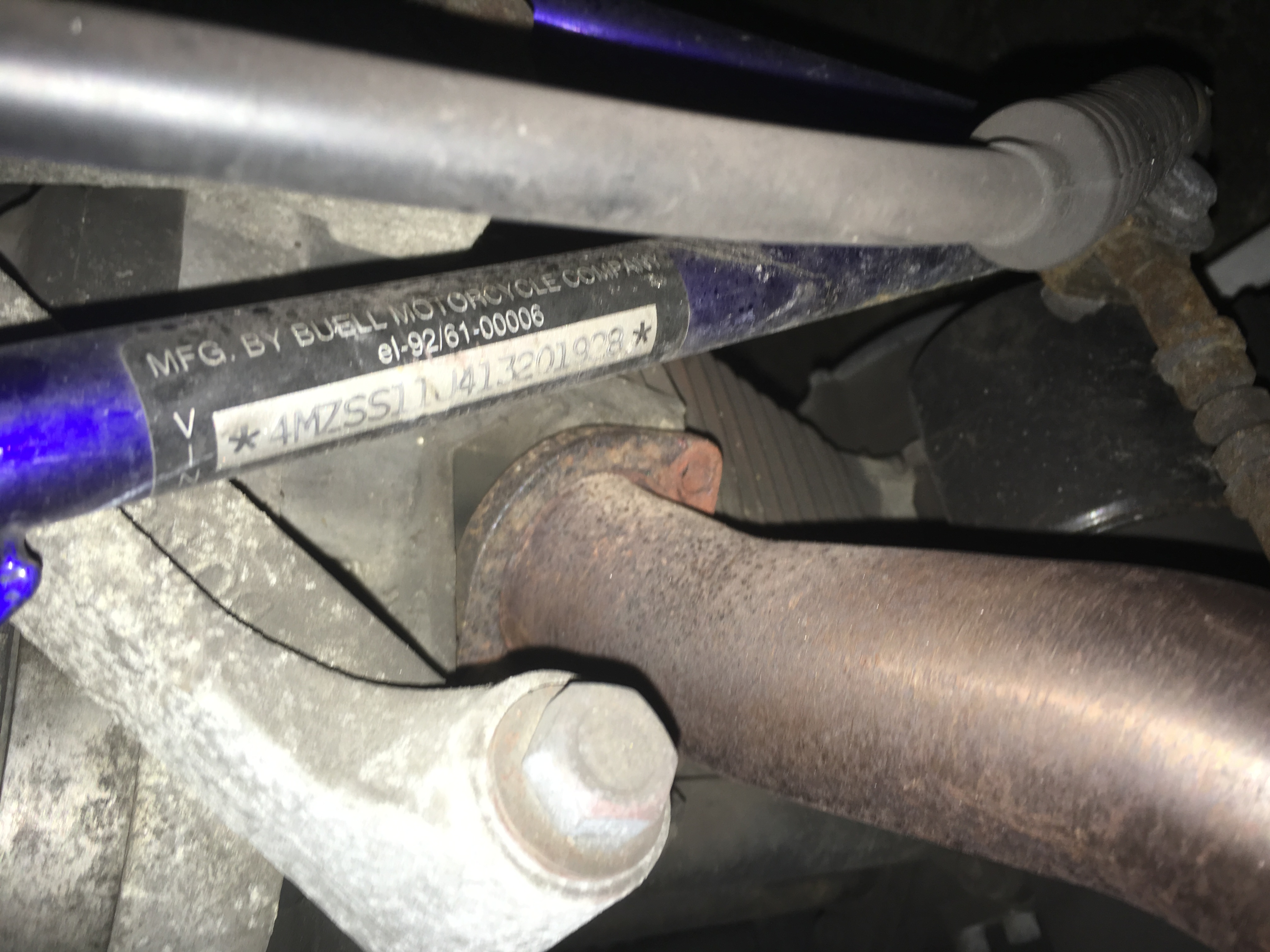

Wtf , thought the top end was buggered on the x1 , then realised one of the exhaust studs of the front cylinder was missing! How has that happened , I cab even see the thread into the head , but it goes in deep, so not snapped!

Yes I know it’s scabby before you point it out.....anyone give any pointers as to why? It has been replaced about 12k, now at 20k ......

What size do i need , part number? Quick fix till I ride it up to :maz: ?


Attachments:
B901F0D6-12C1-4CA6-890F-974A886B4FF6.jpeg [ 1.57 MiB | Viewed 2859 times ]

_________________
Buell X1 lightning 2001 in white
Top
  Send private message
Reply with quote
Nutah
PostPosted: 04 Oct 2018 02:58
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 10497
Current ride: X1 2001
Location: southampton
the same as a HD sportster stud
I think they are UNC , but check first

_________________
Feros Ferio
Top
  Send private message
Reply with quote
Finmows
PostPosted: 04 Oct 2018 09:55
Offline
User avatar

Joined: 06 May 2009 13:43
Posts: 4945
Current ride: The wife
Location: Cofa's tree
Babybadger wrote:
Yes I know it’s scabby before you point it out.....anyone give any pointers as to why?

Because it gets ridden more than polished?

_________________
I hate being strapped for cash....but it pays the bills
Top
  Send private message
Reply with quote
Babybadger
PostPosted: 04 Oct 2018 14:59
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002
Finmows wrote:
Babybadger wrote:
Yes I know it’s scabby before you point it out.....anyone give any pointers as to why?

Because it gets ridden more than polished?


Exactly that, its a ridden bike, not a trophy! Its as 'battlescarred' as its owner.......

_________________
Buell X1 lightning 2001 in white
Top
  Send private message
Reply with quote
Beef
PostPosted: 04 Oct 2018 15:10
Offline
has it got a pulse?
User avatar

Joined: 06 May 2009 15:47
Posts: 2565
Current ride: FUBAR...Enough said!
Location: Reading
You may find that if the exhaust system has not been mounted then tightened everywhere little by little until all mounts are tight, it may not have been loading the head studs uniformly resulting it snapping or vibrating out.

_________________
FUBAR pilot

You only need two bikes in life-an S1 and a Multistrada!


Top
  Send private message
Reply with quote
Babybadger
PostPosted: 04 Oct 2018 16:46
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002
Beef wrote:
You may find that if the exhaust system has not been mounted then tightened everywhere little by little until all mounts are tight, it may not have been loading the head studs uniformly resulting it snapping or vibrating out.


Thanks mate, I am going to replace all 4 studs and gaskets to be on the safe side........
I might even repack the Supertrapp and put it back on , as it has the standard pipe on still......

_________________
Buell X1 lightning 2001 in white
Top
  Send private message
Reply with quote
Maz
PostPosted: 04 Oct 2018 17:20
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8244
Location: Manchester
Quote:
I am going to replace all 4 studs


Good luck with that :eat:

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR
Top
  Send private message
Reply with quote
kevmean
PostPosted: 04 Oct 2018 20:01
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7256
Current ride: 1991 RS1200 westwind
Babybadger wrote:
Beef wrote:
You may find that if the exhaust system has not been mounted then tightened everywhere little by little until all mounts are tight, it may not have been loading the head studs uniformly resulting it snapping or vibrating out.


Thanks mate, I am going to replace all 4 studs and gaskets to be on the safe side........
I might even repack the Supertrapp and put it back on , as it has the standard pipe on still......

Never ever try to replace an exhaust stud that isn't broken ;) fit new ones if the old one screws out when trying to undo the nut or if one has broken but never ever remove a stud if it's still usable ;)

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.
Top
  Send private message
Reply with quote
Babybadger
PostPosted: 05 Oct 2018 11:51
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002
So just replace the one that fell out and the gasket? or just the stud and nut?

_________________
Buell X1 lightning 2001 in white
Top
  Send private message
Reply with quote
Maz
PostPosted: 05 Oct 2018 12:11
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8244
Location: Manchester
Looking at the amount of corrosion on that bike, retaining ring will need replacing.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR
Top
  Send private message
Reply with quote
Babybadger
PostPosted: 05 Oct 2018 18:32
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002
Maz wrote:
Looking at the amount of corrosion on that bike, retaining ring will need replacing.


I feel embarrassed and shamed by :maz: , I hold my head in shame ....

_________________
Buell X1 lightning 2001 in white
Top
  Send private message
Reply with quote
DaveH
PostPosted: 05 Oct 2018 18:47
Offline

Joined: 07 May 2009 21:27
Posts: 1354
Current ride: XB12s,S1WL, Triumph
Location: Glossop in't th'hills
Try the other front stud by double nutting it if it doesn't want to come don't force it. If the back ones are ok leave em.
Top
  Send private message
Reply with quote
Babybadger
PostPosted: 06 Oct 2018 10:43
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002
DaveH wrote:
Try the other front stud by double nutting it if it doesn't want to come don't force it. If the back ones are ok leave em.


I think the guy that drilled out the last snapped stud didn’t go deep enough , so I may have to ‘cut’ it down, will I have to remove the header and stuff the put the stud in, as the old just looks like it spun itself out , bloody vibrates enough!

_________________
Buell X1 lightning 2001 in white
Top
  Send private message
Reply with quote
gusm2
PostPosted: 06 Oct 2018 12:10
Offline

Joined: 06 May 2009 17:10
Posts: 2512
Current ride: 99 Cyclone M2
Location: Liverpool
You may find there's still a bit of the old stud in that hole :idea:

_________________
Last year I joined a group for anti-social people
We haven't met yet.
Top
  Send private message
Reply with quote
Babybadger
PostPosted: 10 Oct 2018 17:06
Offline
User avatar

Joined: 06 May 2009 14:32
Posts: 425
Current ride: Buell X1 2002
gusm2 wrote:
You may find there's still a bit of the old stud in that hole :idea:


How deep is the hole (ooer) ....... or should I say how deep should the whole be? Anyone?
