 Post subject: neutral switch issues
PostPosted: 13 Jul 2020 11:10
Offline

Joined: 21 Feb 2019 00:15
Posts: 49
Current ride: Ulysses XB12X
been doing a bit of maintenance for MOT - new rear tyre, wheel bearings, EBC disc and pads, belt tensioner pulley bearings. axle stuck in swinging arm on removal - so everything all lubed up on replacement

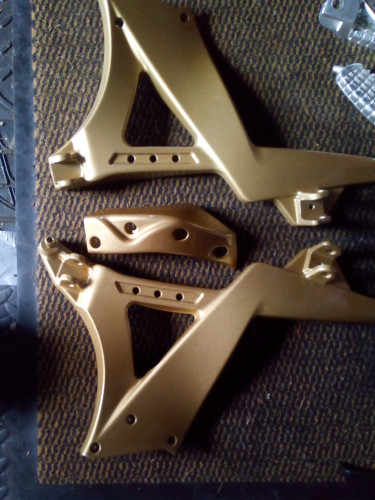

also got some powder coating done on Swing arm brace and footrest hangers - despite photo they are all the same colour


put it all together and goes to start - no neutral light - but pulling clutch in allows start - so looks like ignition light switch gubbed - but another thing - one side of my indicators was flashing really fast while other side was flashing normally - could this be linked to neutral switch - or is it just a coincidence that both issues started at same time?
plus it says in manual that can be done without belt removal - can it?

cheers
Muir


Attachments:
footrest hangers.jpg
footrest hangers.jpg [ 2.67 MiB | Viewed 1191 times ]
Top
PostPosted: 13 Jul 2020 11:49
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 10851
Current ride: X1 2001
Location: southampton
the side thats flashing faster , are both the lamps working ?
only normaly faster means lower load .

try giving the neutral switch a good spray of contact cleaner (not wd40)

_________________
Feros Ferio


Top
PostPosted: 13 Jul 2020 12:02
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8629
Location: Manchester
Neutral switch failure is very common, pull the terminal off the switch and earth it, lamp should light and bike will start as normal. Pulley will need removing to change the switch.
Are both lamps flashing on the fast side and if so are both 'bulbs' the correct wattage ?

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 13 Jul 2020 13:42
Offline

Joined: 21 Feb 2019 00:15
Posts: 49
Current ride: Ulysses XB12X
yes both bulbs on near side flashing quickly - off side flashing normally and only just started so no bulb changes - but will check

will also check continuity and clean switch with contact cleaner

thanks
Muir


Top
PostPosted: 13 Jul 2020 18:41
Offline

Joined: 21 Feb 2019 00:15
Posts: 49
Current ride: Ulysses XB12X
Chin fairing and pulley cover back off and managed to get cap off neutral switch - bit of a clean and tested (ground to earth) and light comes on - so i managed to get the cap back on (it is a lot easier geting it off) and lo and behold neutral light seems to be working again - and the indicator glitch has disappeared as well - so not a coincidence

i have a switch coming from Riders - but needed light to work for MOT - so here's hoping

cheers and thanks to Nutah and Maz
Muir


Top
PostPosted: 13 Jul 2020 20:12
Offline
User avatar

Joined: 06 May 2009 15:15
Posts: 138
Current ride: XB12X
Location: Deutschland
If/when you come to replace the neutral switch you can do it without the hassle of removing the pulley by modifying a bos spanner. I forget the size for the switch now but get a box spanner that fits and cut away about half of the shank of the spanner for a length you can determine by holding the spanner next to the pulley. I just used a dremel with a cutting disc (much easier and cheaper with a box spanner than with a deep socket) to remove the metal.

Then process is simple
1) Undo right side of chin spoiler
2) Remove pulley cover
3) Loosen rear axle and move belt off front pulley.
4) Disconnect wire from neutral switch
5) Use modified box spanner to remove switch.
6) Refitting is the reverse process as they say.

I did mine about 6 weeks ago and took about 30 mins.

_________________
To Lands End and beyond


Top
PostPosted: 13 Jul 2020 20:39
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8629
Location: Manchester
In my world it's just easier and quicker to remove the pulley but I guess not everyone has the kit to do that :?
Switch is 5/8''

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 14 Jul 2020 14:50
Offline
Moderator
User avatar

Joined: 15 Apr 2009 17:25
Posts: 11771
Location: Oswestry
:yt: To remove the pulley is one nut! (ok...and 2 screws on the lock ring) I've just made a special spanner to get at one of the nuts on a Velocette magneto, and it took nearly 1/2hour + the cost of a 7/16 BSF spanner.

_________________
If your dreams don't scare you, they are not big enough.


Top
PostPosted: 14 Jul 2020 17:29
Offline
User avatar

Joined: 06 May 2009 17:28
Posts: 7253
Current ride: 1991 RS1200 westwind
Also remember that the issue could have just been corrosion between the connector and switch and removing and refitting cleaned it enough to get contact again, so see how it goes for a while before ripping it all to bits ;)

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.


Top
PostPosted: 14 Jul 2020 23:33
Offline

Joined: 06 Apr 2019 17:14
Posts: 51
Current ride: None
I had to replace the neutral switch on my Ully, while I don’t doubt it can be done without removing the pulley, as Maz said, it’s really simple with the pulley removed.

To remove the big nut you need a big socket (from memory 1 7/8” or 48mm). An impact wrench helps too ;) although after removing the lock ring the big nut on mine just came off by hand because it’d been butchered and split by some hamfisted tit of a PO (with a cold chisel and lump hammer by the looks of it). :shock: Some people just shouldn’t be allowed near tools. :cry:
