PostPosted: 15 Aug 2020 12:23
Offline

Joined: 25 Jun 2013 15:21
Posts: 15
Current ride: XB9r
Location: London

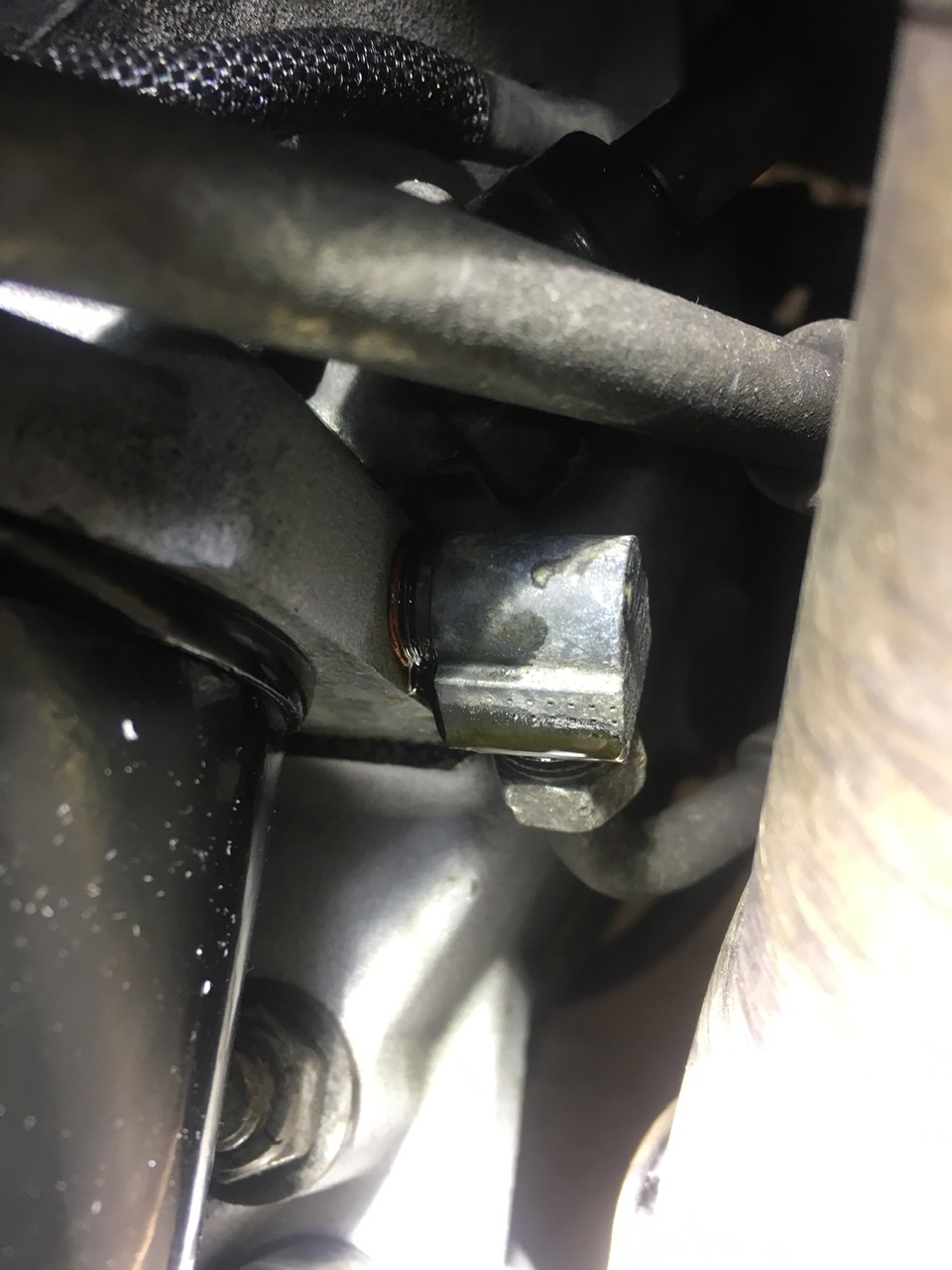

Hi, Got a slight weeping from fitting from oil pump to hose. Can I take this off, clean up and refit?
Is there any sealant, o-rings or washers used on these?
Always been an oil tight engine until now.
Any help much appreciated.
Thanks in advance.


Attachments:
B36E525A-9B94-4C82-9B1A-CA6847F3FB3D.jpeg [ 207.91 KiB | Viewed 1760 times ]
761617E9-46B3-49CE-B17C-0B4FD4314AA0.jpeg [ 212.42 KiB | Viewed 1760 times ]
Top
PostPosted: 16 Aug 2020 03:39
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 10850
Current ride: X1 2001
Location: southampton
looks like it has some sealant around the thread already ?

_________________
Feros Ferio


Top
PostPosted: 16 Aug 2020 05:50
Offline
User avatar

Joined: 07 Nov 2011 18:10
Posts: 4041
Current ride: Buell ulysses
Location: Telford
:yt: Might have just gone brittle / porous with age , or number of heat cycles.

_________________
Buell Ulysses XB12X 06/08


Top
PostPosted: 16 Aug 2020 07:42
Offline

Joined: 25 Jun 2013 15:21
Posts: 15
Current ride: XB9r
Location: London
Thanks for replies. i notice this fitting rocks slightly when I put pressure on it and yes Nutah, it has got sealant on there already. The Bike only had 5000 miles on it when I bought it so I'm presuming it came from factory like that. I can't find any information for what sealants to use on Buells. Any recommendations? I've got loctite 574.
As this now seems like this is an obsolete part, has anybody replaced with Goodridge braided hose and a Banjo bolt?

I wish I was still 20, I wouldn't be fannying about, and would have sorted this with a big hammer and sticky tape.


Top
PostPosted: 16 Aug 2020 17:45
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 10850
Current ride: X1 2001
Location: southampton
:askmaz:

be carefull in case it's a tapered thread too

_________________
Feros Ferio


Top
PostPosted: 16 Aug 2020 18:19
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8629
Location: Manchester
It is a tapered thread, 1/8 NPT.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 17 Aug 2020 17:10
Offline

Joined: 25 Jun 2013 15:21
Posts: 15
Current ride: XB9r
Location: London
Maz wrote:
It is a tapered thread, 1/8 NPT.

Thanks Maz and Nutah, I’ve ordered a replacement but will be around 3 weeks. Think I will try to use my existing one. I understand that it should end up at a 4 o’clock angle. What sealant should I use? It seems to have some on there.


Top
PostPosted: 17 Aug 2020 18:35
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8629
Location: Manchester
PTFE

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 17 Aug 2020 19:02
Offline

Joined: 25 Jun 2013 15:21
Posts: 15
Current ride: XB9r
Location: London
Maz wrote:
PTFE

Cheers


Top
PostPosted: 18 Aug 2020 04:59
Offline
User avatar

Joined: 29 Apr 2009 19:27
Posts: 927
Bob wrote:
Thanks for replies. i notice this fitting rocks slightly when I put pressure on it and yes Nutah, it has got sealant on there already. The Bike only had 5000 miles on it when I bought it so I'm presuming it came from factory like that. I can't find any information for what sealants to use on Buells. Any recommendations? I've got loctite 574.
As this now seems like this is an obsolete part, has anybody replaced with Goodridge braided hose and a Banjo bolt?

I wish I was still 20, I wouldn't be fannying about, and would have sorted this with a big hammer and sticky tape.

577 would be better as it's designed for threaded joints. 574 isn't made for threads specifically, but should be fine. I never use PTFE tape on threaded oil connections, sooner or later it will leak. Loctite 574 is a pretty permanent seal.

_________________
Try doing this to yer fueller...........


Top
PostPosted: 18 Aug 2020 14:36
Offline

Joined: 25 Jun 2013 15:21
Posts: 15
Current ride: XB9r
Location: London
03 wrote:
Bob wrote:
Thanks for replies. i notice this fitting rocks slightly when I put pressure on it and yes Nutah, it has got sealant on there already. The Bike only had 5000 miles on it when I bought it so I'm presuming it came from factory like that. I can't find any information for what sealants to use on Buells. Any recommendations? I've got loctite 574.
As this now seems like this is an obsolete part, has anybody replaced with Goodridge braided hose and a Banjo bolt?

I wish I was still 20, I wouldn't be fannying about, and would have sorted this with a big hammer and sticky tape.

577 would be better as it's designed for threaded joints. 574 isn't made for threads specifically, but should be fine. I never use PTFE tape on threaded oil connections, sooner or later it will leak. Loctite 574 is a pretty permanent seal.


Thanks for that nugget ✔️


Top
PostPosted: 09 Sep 2020 17:14
Offline

Joined: 25 Jun 2013 15:21
Posts: 15
Current ride: XB9r
Location: London
All sorted. Thanks for input.
Got some 577 in the end...


Top
PostPosted: 09 Sep 2020 21:00
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 10850
Current ride: X1 2001
Location: southampton
:sun:
