Dual front brake rotors
https://ukbeg.com/forum/viewtopic.php?f=8&t=25616		 Page 1 of 1
Author:  brother in buells [ 29 May 2025 14:28 ]
Post subject:  Dual front brake rotors
Having this Buell X1 project for a couple weeks now made me think about putting dual brake rotors on.
Just for fun and because i haven't already enough to do lOl

So my question "does any of you know or have experience with what rotors are fitting?
Any Jap or Italian motorcycle rotors that have the same bolt pattern and circle diameter?
I know there is more involved ,but starting with getting information which way to go and how much to spend.
Trying to do this on a low budget kind of way :roll:

Have looked and tried to find more information about early Ducati and Suzuki rotors , but haven't found much.

If I'm correct the buell bolt circle pitch for the front rotor is 58.8

Picture is for attention
But if someone knows the brand , let's hear!

Attachments:
Screenshot_20250509-135148.png [ 1.55 MiB | Viewed 893 times ]
Author:  barney [ 29 May 2025 18:45 ]
Post subject:  Re: Dual front brake rotors
IIRC other have put complete Suzuki front end . :idea:
and you already said that fork uppers or beyond repair due to corrosion.
Author:  brother in buells [ 29 May 2025 21:47 ]
Post subject:  Re: Dual front brake rotors
Yes i could swap complete front end!
But this X1 has shiny PM wheels
And I actually want to keep them.
Author:  Stot [ 30 May 2025 11:34 ]
Post subject:  Re: Dual front brake rotors
I have been looking at this recently. I got some Nissin N6-90R/L calipers as they are very similar to the Buell ones but the Buell discs are offset and the calipers are offset too compared to the N6s, they are about 10mm further outboard. This meant that the inboard side of the N6 calipers fouled the wheel spokes when mounted to the fork and wouldn't be centred on the disc anyway.

I had found this image of a set that was being sold some years back using what look like 4 pot brembo callipers from Moto-Guzzi/Monster if it helps any although this is showing discs with a 6 hole pattern. ¯\_(ツ)_/¯

Cheers
Stot

Attachments:
br_upgrade.jpg [ 27.33 KiB | Viewed 852 times ]
Author:  brother in buells [ 02 Jun 2025 21:18 ]
Post subject:  Re: Dual front brake rotors
Thanks for your input and information!
:yup:
Author:  ursus americanus [ 04 Jun 2025 13:39 ]
Post subject:  Re: Dual front brake rotors
It might be worth checking out the Devilstars Club in Italy https://www.devilstars.com/

I met them at an EBR event ten years ago and it seemed like just about every other bike whether it was a Tuber or a Fueller had a twin disc set up.

Website could be a good first step but they also have a Facebook page and Instagram account.

Steve
Author:  TRS666 [ 16 Jun 2025 12:35 ]
Post subject:  Re: Dual front brake rotors

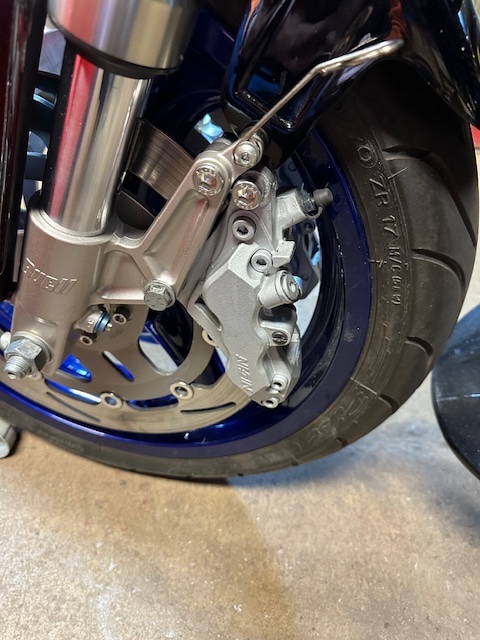

Did this during winter, not that it was needed but looks cool and i like solving problems!
Nissin left caliber with 90mm mounts from eBay, OEM brake rotor also eBay, 3/4" master cylinder from Triumphy 1200 Scrambler i think it was, some machining to center the caliber to rotor, homemade bracket for caliber upper mount (between the 2 insex bolts) and second brake line made in a local shop + some holders for the brake lines. Total cost around €700. Caliber and rotor were new, master used. Works good and not too aggressive bite which i was a bit nervous of.

Attachments:
Vänster ok.jpg
Vänster ok.jpg [ 123.07 KiB | Viewed 680 times ]
Author:  brother in buells [ 18 Jun 2025 21:20 ]
Post subject:  Re: Dual front brake rotors
TRS666 wrote:
Did this during winter, not that it was needed but looks cool and i like solving problems!
Nissin left caliber with 90mm mounts from eBay, OEM brake rotor also eBay, 3/4" master cylinder from Triumphy 1200 Scrambler i think it was, some machining to center the caliber to rotor, homemade bracket for caliber upper mount (between the 2 insex bolts) and second brake line made in a local shop + some holders for the brake lines. Total cost around €700. Caliber and rotor were new, master used. Works good and not too aggressive bite which i was a bit nervous of.


Thanks for your input! TRS666 :worthy:

Did you use a brake disc that is actually for the right side (centre and slots in the disc pointing other way around)
Or did you found one that is especially for the left side?

The only ones I could find are for the right side ,that's why I asked which different brake discs are fitting on the tube frame buell front wheels.
Author:  03 [ 19 Jun 2025 07:52 ]
Post subject:  Re: Dual front brake rotors
Highly recommend these discs from Italy. I bought a pair and really, they were too nice to put on a motorcycle and get them dirty. Obviously, you have to tell them you want a left and right hand pair.

https://en.discacciatidbs.com/product/b ... -standard/
Author:  TRS666 [ 19 Jun 2025 08:17 ]
Post subject:  Re: Dual front brake rotors
brother in buells wrote:
TRS666 wrote:
Did this during winter, not that it was needed but looks cool and i like solving problems!
Nissin left caliber with 90mm mounts from eBay, OEM brake rotor also eBay, 3/4" master cylinder from Triumphy 1200 Scrambler i think it was, some machining to center the caliber to rotor, homemade bracket for caliber upper mount (between the 2 insex bolts) and second brake line made in a local shop + some holders for the brake lines. Total cost around €700. Caliber and rotor were new, master used. Works good and not too aggressive bite which i was a bit nervous of.


Thanks for your input! TRS666 :worthy:

Did you use a brake disc that is actually for the right side (centre and slots in the disc pointing other way around)
Or did you found one that is especially for the left side?

The only ones I could find are for the right side ,that's why I asked which different brake discs are fitting on the tube frame buell front wheels.


It´t a right side rotor even on the left side. Thought it could make noise or something but no problems.
Author:  brother in buells [ 19 Jun 2025 20:39 ]
Post subject:  Re: Dual front brake rotors
Okay good to know!

Thanks :yup:
Author:  brother in buells [ 19 Jun 2025 20:47 ]
Post subject:  Re: Dual front brake rotors
03 wrote:
Highly recommend these discs from Italy. I bought a pair and really, they were too nice to put on a motorcycle and get them dirty. Obviously, you have to tell them you want a left and right hand pair.

https://en.discacciatidbs.com/product/b ... -standard/


Did came across these with Google.
Looking sharp , but a bit expensive for almost 300- each :ill:

My idea was to do this on a low budget kind of way lOl
This X1 is totally not a showroom piece ,so putting this together with second hand and used parts is the plan.

But thanks much for your input!
