Rubber pip on the throttle body (XB 03 to 07)
https://ukbeg.com/forum/viewtopic.php?f=8&t=8603		 Page 1 of 2
Author:  pash [ 04 Oct 2010 21:30 ]
Post subject:  Rubber pip on the throttle body (XB 03 to 07)

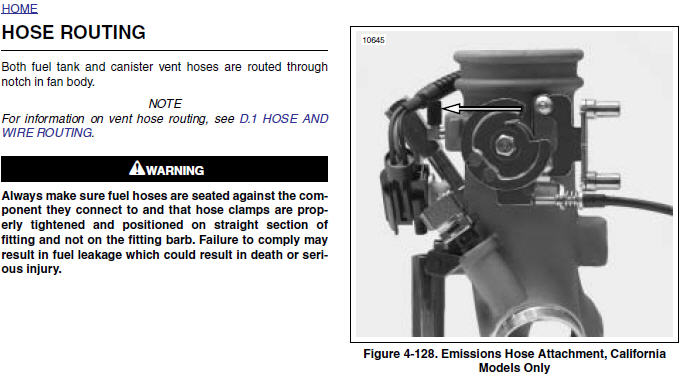

Anyone inspected the rubber end cap on the connector on the side of the throttle body recently (see diagram, not shown, but fits on the connector pointing upwards)?
Attachment:
throttle.jpg [ 11.37 KiB | Viewed 4563 times ]

I was in the garage tonight, and I had a look at one XB and there was no end cap, looked on a spare throttle body, no end cap, then looked on another XB, the end cap was perished...

I haven't ridden a bike with no end cap, but without one, it leaves a hole for air to pass just downstream of the butterfly, and I can only guess the bike will not run very well...

But what to do if the end cap is missing? The part isn't listed, so I would think some 4mm fuel pipe with an M5 allen screw in the end...

Next question, what was it there for? Perhaps for an ECM pressure correction for Erik's turbo application...
Author:  Adam [ 04 Oct 2010 22:01 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Try the cap off a Fairy Liquid bottle. It might fit. They go on brake nipples a treat ;) :D
Author:  Maz [ 04 Oct 2010 22:08 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Tis the evap port.......and most XB's/X1's have long since blown them off.
Author:  pash [ 05 Oct 2010 12:02 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
And in blowing them off, you end up with a small hole to ingest hot (unfiltered) air from between the cylinders and as such you will need to close the butterfly a tad more to make the bike tick over properly and your TPS to airflow relationship will change resulting in a lumpier engine...
Author:  Maz [ 05 Oct 2010 12:16 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Correct.
Author:  dj1000 [ 05 Oct 2010 16:09 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Is it that one?

Attachments:
plug.jpg [ 57.54 KiB | Viewed 4497 times ]
Author:  Maz [ 05 Oct 2010 17:30 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Yep.
Author:  Nate [ 05 Oct 2010 17:47 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Some stores that sell cake trays or other wire kitchen shite have these little rubber caps on the wire frames etc to stop them scratching the kitchen work surfaces.

;)

N.
Author:  THE FLYING DUCHMAN [ 05 Oct 2010 17:49 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
For the love of God is there no end to this sort of shit on a Buell.

Only morons cap air ports with rubber plugs, as they will always fail in the long term, or worse still only leak a bit and give bad readings for set up of systems. Carbs are bad enough but FI systems MUST HAVE leak free air systems.

The fecking bike has only got two cyls to start with :roll:.
Author:  Nate [ 05 Oct 2010 18:20 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
THE FLYING DUCHMAN wrote:
For the love of God is there no end to this sort of shit on a Buell.

Only morons cap air ports with rubber plugs, as they will always fail in the long term, or worse still only leak a bit and give bad readings for set up of systems. Carbs are bad enough but FI systems MUST HAVE leak free air systems.

The fecking bike has only got two cyls to start with :roll:.



Most carbs hav'm infact except carbed Guzzi's n' Ducati's. Carbs need no leaks as much as FI dude.

N :)
Author:  THE FLYING DUCHMAN [ 05 Oct 2010 18:31 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Yes I do know that a carb system needs that as well.
Author:  pash [ 05 Oct 2010 18:35 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
Yeah, but as Maz says, this is there to connect to the tank breather via the carbon canister for California emissions.

4mm hose with M5 Allen screw does the trick, maybe a bit of lockwire as a belt and braces solution.
Author:  pash [ 05 Oct 2010 20:41 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
So, here is the hole. With the butterfly closed, it is upstream...

...however when you crack open the throttle a tiny bit, like for idle, it is downstream of the butterfly, in the depression, so will allow extra air to be sucked in...

...here is my bit of hose and M5 screw...

When my current three projects are cleared out of the way, I'll connect up a pressure transducer and log some data...
Author:  MO [ 06 Oct 2010 20:55 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
For those of you that don't want to manufacture your own.
Part No 27584-02
Author:  pash [ 06 Oct 2010 21:25 ]
Post subject:  Re: Rubber pip on the throttle body (XB 03 to 07)
But nearly £4 each... :evilh:
