 Post subject: M2 Cyclone shock
PostPosted: 12 Oct 2010 16:23
Offline

Joined: 29 Aug 2010 12:45
Posts: 20
Location: Germany
Hi all,

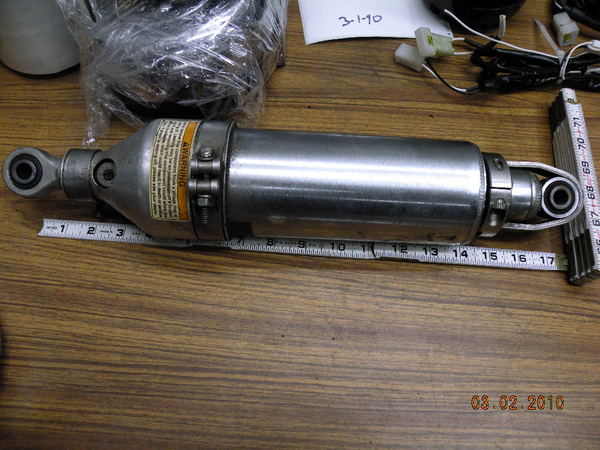

Is it possible to take this shock apart, as mine is leaking from the front.
I have the possibility to purchase all seals if need, but can they be replaced. ??

Thanks for any help.

Chris


Attachments:

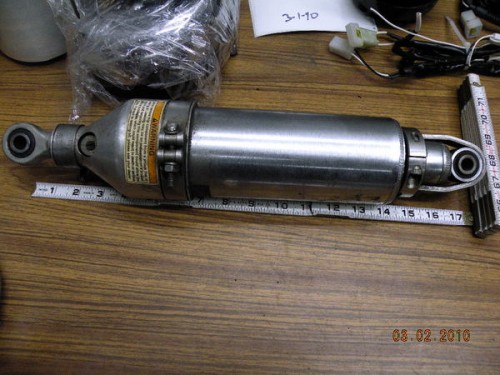

m2 shock.JPG
m2 shock.JPG [ 97.85 KiB | Viewed 1116 times ]
Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 12 Oct 2010 17:27
Offline
User avatar

Joined: 06 May 2009 19:42
Posts: 3150
Current ride: M2 Razorback
Location: Mouth of the Port in the Shire of Hamp
:shock: :shock: :shock: :shock: :shock:
Er no, it's not... and what are you doing with that (Recall Type 1?) piece of junk? They should've all been replaced with Recall Type 2 if not Type 3 many years ago......
Wisdom here is to get a replacement from AST but you may need to sell a kidney first.

_________________
'98 M2 Razorback, it's a keeper.


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 12 Oct 2010 17:32
At least it's a recall, my mate was riding around with a non recalled shock on his S1 untill last week!... :roll: :roll:


Top

 Post subject: Re: M2 Cyclone shock
PostPosted: 12 Oct 2010 19:22
Offline
User avatar

Joined: 09 May 2009 22:05
Posts: 129
Current ride: V85Tt, SurRon,Tracer
Location: Portland
Did it break? My S1 still has original shock :shock: I was 2 up at the weekend which is very rare for me so hopefully it will cope with my normal riding. Have forum members seen many actual failures? I was made redundant a while ago so budget to replace it is zero.

Was anyone else here at Weymouth beach racing on Sunday?


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 12 Oct 2010 20:31
Offline
User avatar

Joined: 05 May 2009 20:00
Posts: 10497
Current ride: X1 2001
Location: southampton
griff wrote:
Did it break? My S1 still has original shock :shock: I was 2 up at the weekend which is very rare for me so hopefully it will cope with my normal riding. Have forum members seen many actual failures? I was made redundant a while ago so budget to replace it is zero.

Was anyone else here at Weymouth beach racing on Sunday?


griff , it should be done free of charge from Buell /HD

_________________
Feros Ferio


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 12 Oct 2010 21:04
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8245
Location: Manchester
.....and that's not a recall shock, it has the SRP kit fitted.

To answer your question, no, it's not rebuildable and I'm puzzled as to how it can leak from the front unless a weld is failing ?

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 18:18
Offline
User avatar

Joined: 15 May 2009 17:34
Posts: 3567
Location: The borders of insanity
griff wrote:
Did it break? My S1 still has original shock
Fret not - So does my S3. I'm not holding my breath for a recall any more. One day I may do the AST thing. The WP is at least rebuild-able - and if it's lasted 10 years - my guess is it's OK.

:ner: Purists ;)

_________________
Sept 2017. Email will find me.


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 18:33
Offline

Joined: 29 Aug 2010 12:45
Posts: 20
Location: Germany
Hi there,
It is leaking from the end near 17inch on ruler,
there is a wiper seal which appears to have come out.
Can this be replaced, and can I dismantle the shock to do this

thanks

Chris


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 20:41
Offline
Needs more cowbell
User avatar

Joined: 03 Apr 2009 10:09
Posts: 7807
Current ride: None
Location: Southampton
Would this help if it fits ... ?

http://cgi.ebay.co.uk/Buell-S1-Lightnin ... 230abb66bc

Ideally if your feeling a little flush you could get one of these

http://www.twinmotorcycles.nl/webshop/a ... =214&s=&a=

_________________
"With square conduct, level steps, and upright intentions ..”


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 20:43
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8245
Location: Manchester
Piston rod seal at the REAR of the shock has failed. The oil you're seeing at the front has run down inside the spring cylinder.
The wiper seal at the front is only there in an attempt to keep road shit out of the nylon slider bushing for the spring ie. it serves little purpose and is not an oil seal.
To strip the shock you will have to fabricate a tool to compress the spring.....nothing is available commercially, even Buell dont have a tool for this.
In any event, you're wasting your time because even if the shock was rebuildable (which they're not) it would soon fail again.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 20:46
Offline
Needs more cowbell
User avatar

Joined: 03 Apr 2009 10:09
Posts: 7807
Current ride: None
Location: Southampton
http://www.arfc.org/motorcycles/buell/m ... calls.aspx

And here is a later shock and they ship world wide ...

http://cgi.ebay.com/ebaymotors/BUELL-RE ... ccessories

_________________
"With square conduct, level steps, and upright intentions ..”


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 20:46
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8245
Location: Manchester
Ash, the ebay shock you've linked to would also require a new front mount as it's 2'' shorter than the one Shirana has.

AST is the way to go IMO.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 20:48
Offline
Needs more cowbell
User avatar

Joined: 03 Apr 2009 10:09
Posts: 7807
Current ride: None
Location: Southampton
What about this one Chief ... ?

http://cgi.ebay.com/ebaymotors/BUELL-RE ... ccessories

_________________
"With square conduct, level steps, and upright intentions ..”


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 20:53
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8245
Location: Manchester
Same as mate......would need a new front mount.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
 Post subject: Re: M2 Cyclone shock
PostPosted: 13 Oct 2010 21:42
Offline
Needs more cowbell
User avatar

Joined: 03 Apr 2009 10:09
Posts: 7807
Current ride: None
Location: Southampton
Shame, trying to think of things to help the fella out

_________________
"With square conduct, level steps, and upright intentions ..”


Top
