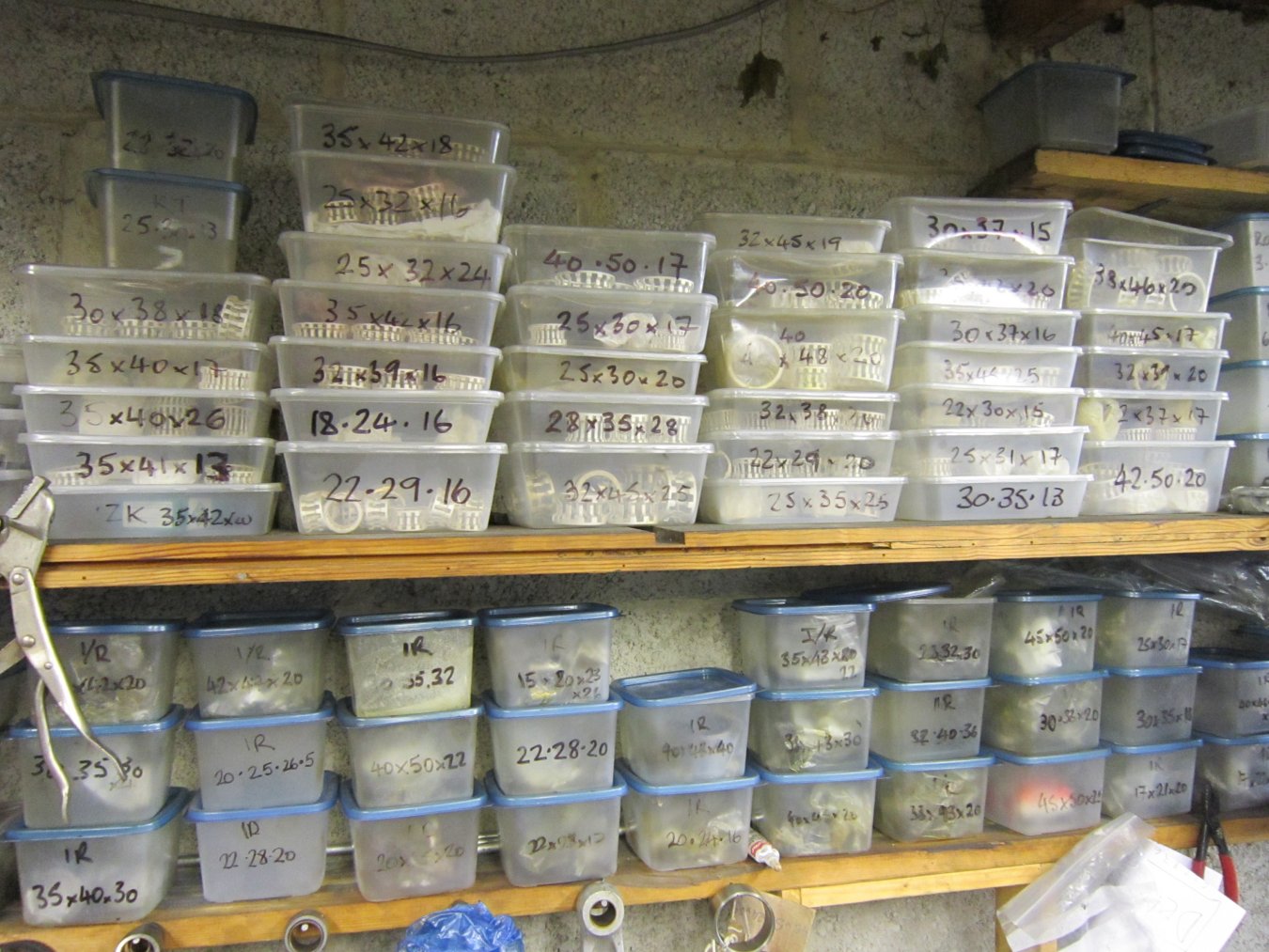

got round to stripping our XB crank safto von n me ,so brians assement ,bearing cage clearence in the big end is 8 thou bob on ,def no more than 8 ,cage very poor ,pressed up constrution instead of one peice in steel ,crank pin boarder line on diameter would like to them larger ,pic shows G 50 on the left buell ont right ,right the numbers ,brian prefers fits bearing rated at 25 kN or greater were poss in 500 CC and larger singles (buell motors ARE just two big singles on a common pin ) RIGHT the dynamic numbers, bearing in the front rod the knife 22.7 kN ,not quite 25 HMMMMMMMM ,bearing in the rear the fork 29.9 kN most excelent ,now sadly brians cages collection dont cover the buell sizes ,see pic of boxes of cages ,RIGHT after 3 hours of catalouges n a phone call we found ,cages ,rollers,poss use of brians hardened rings ,maybe not ,in house pin manufature were getting there,now awating prices ,RIGHT dynamic loads of these ,front knife 23.8 kN closer buuut not quite right ,rear fork 26.7kN after a bit of bla bla these will do ,point of interest number or rollers in the buell cages 16 ,in the ones we tracked down 17 ,not a bad days work peeps and im not in the business of repairing buells SHOCKING

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

more pics

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

What is the inner surface like on the holes in the crank webs?

_________________
08 Specialized Langster

Pah......call that a knackered rod eh?

This is a properly knackered one I fished out of my JAP motor

_________________
If your dreams don't scare you, they are not big enough.

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

When (or if) I ever get a scanner, I'll get up in the loft and dig out the photos of my Bonnie crank, with one half in each side of the crankcase when I split it, to find out why it stopped.

_________________
I started out with nothing and still got most of it left.

That carnage was my fault really I heard it starting to knock in the penultimate race of the meeting. I was having so much fun that day, I could resist going in the allcomers race at the end of the day.............and did I nurse the engine?





Did I fek

_________________
If your dreams don't scare you, they are not big enough.

Somewhere? in the shed, I've got a bolt from the center flywheel of my Beezer A10 embeded in a chunk of crankcase - lesson learned about reusing crank bolts My bacon was saved from wheel lock up by the primary chain snapping - this then wrapped around the clutch hub and took out the primary cases

Happy days

_________________
If your dreams don't scare you, they are not big enough.

doc ,vons sure the damge in the holes on the crank you split was done on assembly not when you split it

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

mate your a feckin animal ,id like you to ride me till i break ,RIDE ME ARD.......... NO ARRRDER ........... AAAAAAAARDER

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

are here again tra la la la la la la la happy days are here AGAAAAAAIN

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

doc heres the vid http://youtu.be/jRV9TsnBG0I

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

Is your medication wearing off

_________________
If your dreams don't scare you, they are not big enough.

Nice

_________________
08 Specialized Langster

NO ,i took it half an hour ago
